Запчасти Case IH PUMA 200 (25.102.AC[01]) - FRONT AXLE - BEVEL GEAR PAIR, CANE VERSION (25) - FRONT AXLE SYSTEM

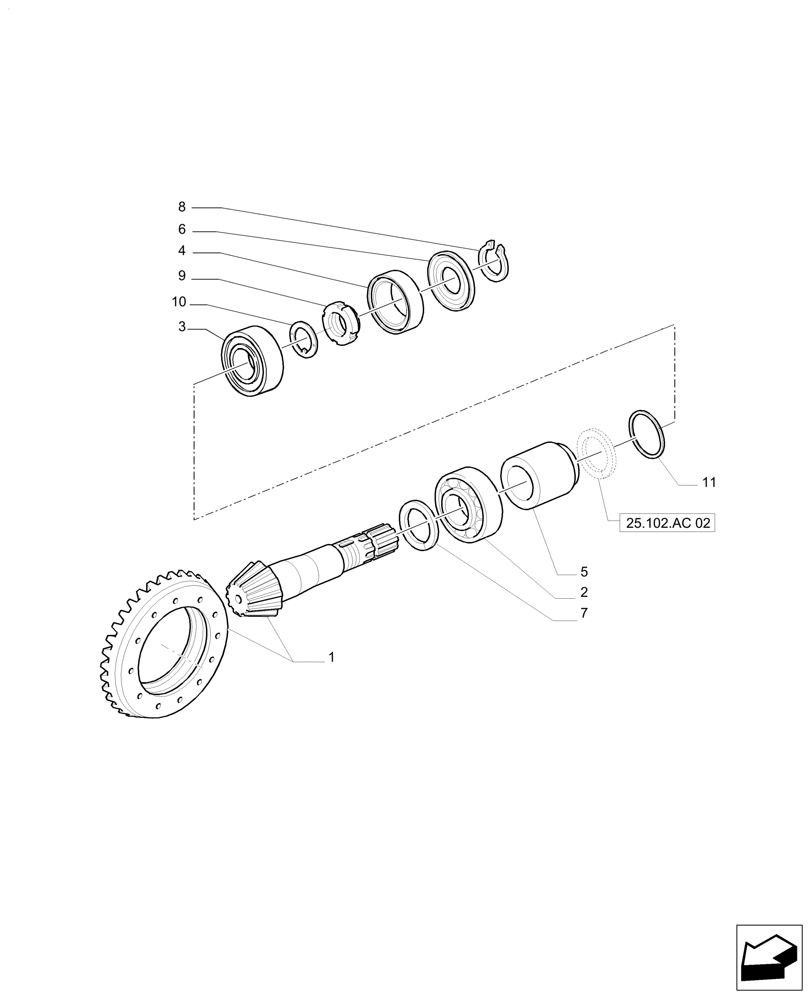

Схема запчастей Case IH PUMA 200 - (25.102.AC[01]) - FRONT AXLE - BEVEL GEAR PAIR, CANE VERSION (25) - FRONT AXLE SYSTEM
25.102.ac 02
8
9
11
2
5
3
10
4
1
6
7

Артикул

Название

Примечание

Количество

1

84365311

BEVEL GEAR

1шт.

2

84567378

TAPERED BEARING

1шт.

3

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.

4

87349657

SEAL,37mm ID x 85mm OD x 15.5mm Thk

1шт.

5

87382586

SPACER,41.7mm ID x 52mm OD x 54mm L

1шт.

6

87546420

SEAL,37mm ID x 87mm OD x 1mm Thk

1шт.

7

84219417

SHIM,45.1mm ID x 58mm OD x 1.9mm Thk

1шт.

7

84219416

SHIM,45.1mm ID x 58mm OD x 2mm Thk

1шт.

7

84219415

SHIM,45.1mm ID x 58mm OD x 2.1mm Thk

1шт.

7

84219414

SHIM,45.1mm ID x 58mm OD x 2.2mm Thk

1шт.

7

5121690

RING,45.1mm ID x 58mm OD x 2.3mm Thk

1шт.

7

5121691

RING,45.1mm ID x 58mm OD x 2.4mm Thk

1шт.

7

4999063

SHIM,45.1mm ID x 58mm OD x 2.5mm Thk

1шт.

7

4999064

SHIM,45.1mm ID x 58mm OD x 2.6mm Thk

1шт.

7

4999065

SHIM,45.1mm ID x 58mm OD x 2.7mm Thk

1шт.

7

4999066

RING,45.1mm ID x 58mm OD x 2.8mm Thk

1шт.

7

4999067

SHIM,45.1mm ID x 58mm OD x 2.9mm Thk

1шт.

7

4999068

SHIM

1шт.

7

4999069

RING

1шт.

7

4999070

RING

1шт.

7

4999071

RING

1шт.

7

4999072

RING

1шт.

7

4999073

RING

1шт.

8

5109282

CIRCLIP,M35, Ext x 2.50 Thk

1шт.

9

84289762

NUT,M40,1.5mm Pitch

1шт.

10

84345881

SPECIAL WASHER

1шт.

11

5169287

SHIM,41.7mm ID x 48mm OD x 2.2mm Thk

1шт.

Выбрано товаров: 27
