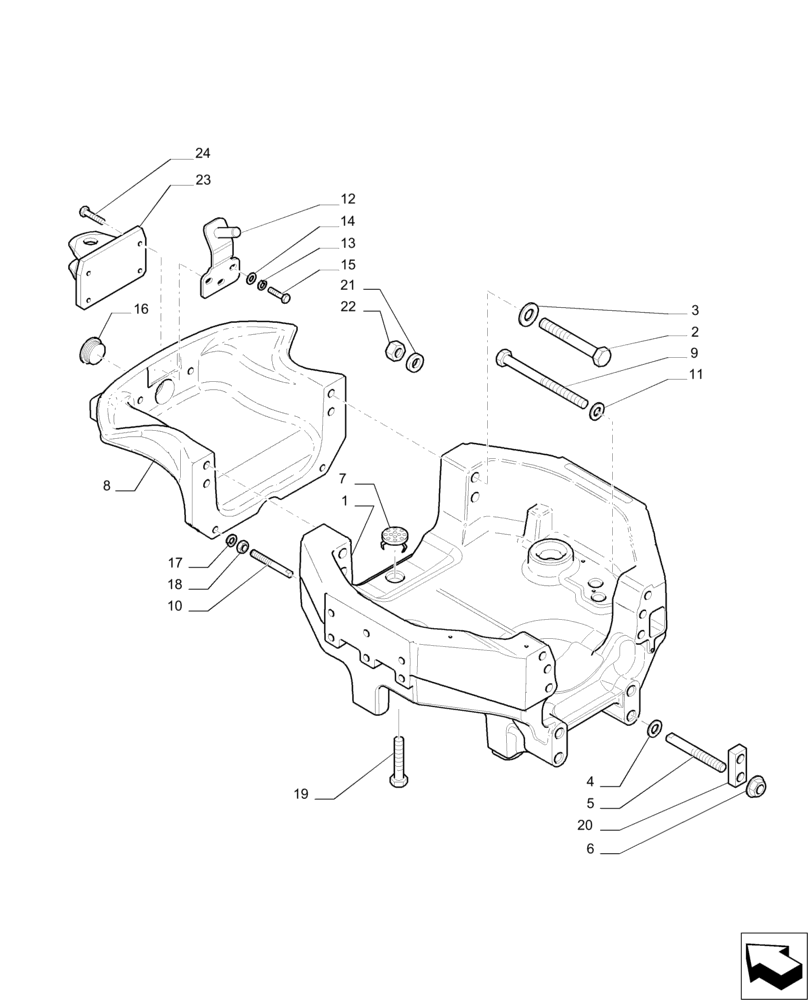

Запчасти Case IH PUMA 200 (25.100.AV[01]) - FRONT AXLE SUPPORT (25) - FRONT AXLE SYSTEM

1

84186969

BOLSTER

1шт.

2

87329682

BOLT,Hex, M24 x 140mm, Cl 10.9

4шт.

3

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

10шт.

4

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

4

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

4

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

4

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

4

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

4

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

4

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

4

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

4

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

4

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

4

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

4

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

5

87308955

STUD

4шт.

6

87312644

NUT,Hex, M20, 1.5 Pitch, 16mm High, Gr R12

4шт.

7

87312875

GRILLE

1шт.

8

87347176

FRAME

1шт.

9

82029234

BOLT,Hex, M20 x 1.5 x 125mm, Cl 12.9

6шт.

10

87302582

STUD

2шт.

11

14497301

WASHER

4шт.

12

87371243

BRACKET

1шт.

13

10516674

LOCK WASHER,M8

3шт.

14

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

15

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

16

82023395

PLUG,60mm ID

1шт.

17

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

2шт.

18

12163524

NUT

2шт.

19

14420571

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9

4шт.

20

87347287

SPACER

4шт.

21

87343481

WASHER,25mm ID x 44mm OD x 4mm Thk

1шт.

22

87391840

NUT,M24 x 3, Class 10.9

1шт.

23

82022185

TOW HOOK

1шт.

24

81863249

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8

4шт.
