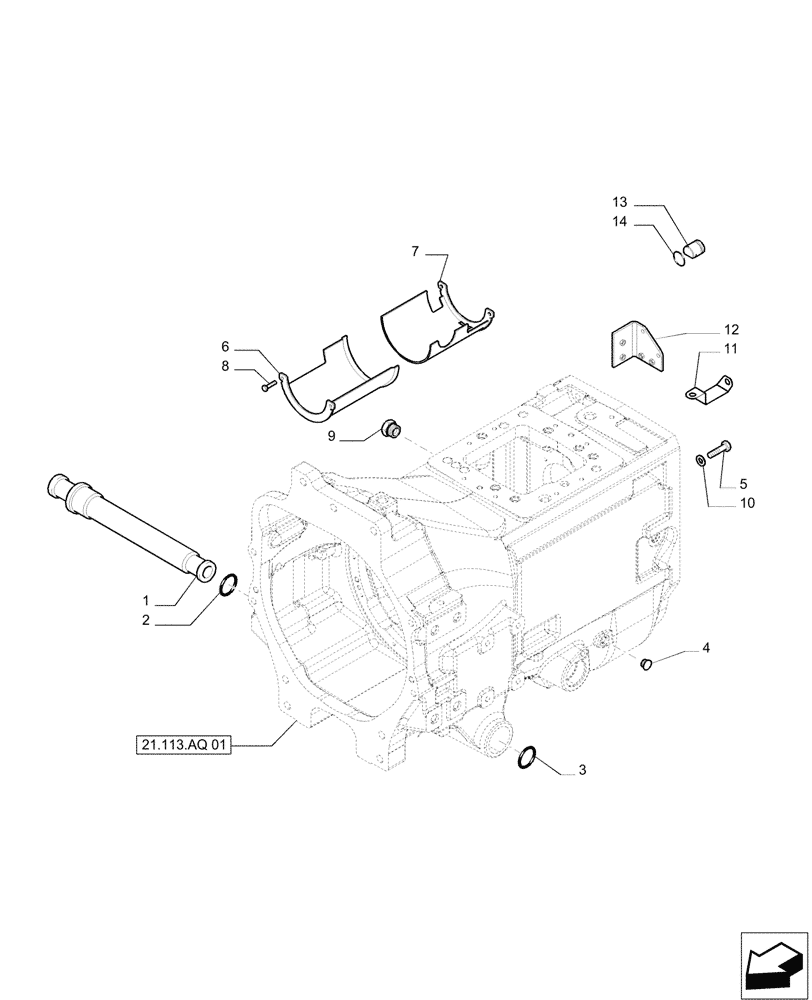

Запчасти Case IH PUMA 200 (21.113.AQ[02]) - CLUTCH BOX ASSY - GUARDS (21) - TRANSMISSION

1

5172331

TUBE

1шт.

2

14464681

O-RING,56.74mm ID x 2.512" OD x 3.53mm

1шт.

3

510121

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

4

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

3шт.

5

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

1шт.

6

5199512

GUARD

1шт.

7

47134158

GUARD

1шт.

8

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

9

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

10

14498801

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

11

87323552

SUPPORT

1шт.

12

87480771

SUPPORT

1шт.

13

87303551

PLUG

1шт.

14

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.
