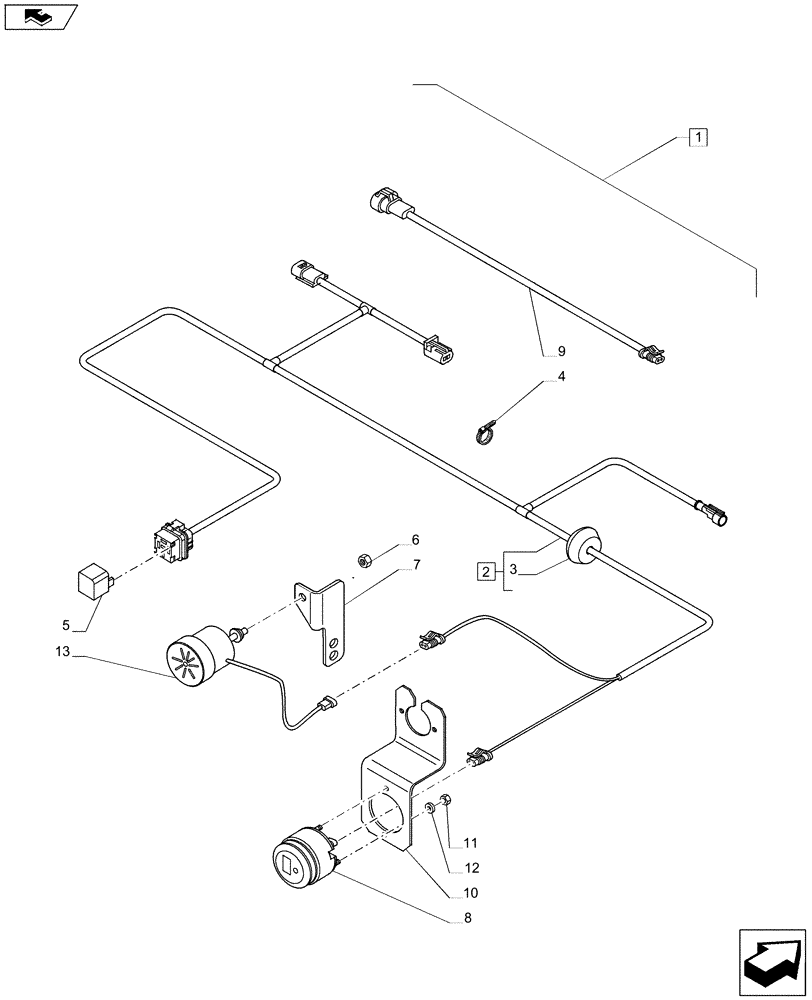

Запчасти Case IH PUMA 200 (88.055.23) - DIA KIT - REVERSE ALARM AND LIGHT (88) - ACCESSORIES

1

719443014

DIA KIT, TRACTOR

Reverse Alarm and Light, Contains Ref. 2-13

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84272504

WIRE HARNESS

Reverse Alarm and Light

1шт.

3

82016008

GROMMET,45.47mm OD x 32mm ID x 19.05mm Thk

1шт.

4

87718512

COLLAR,198 mm L

3шт.

5

82013124

RELAY,12V, 30A

1шт.

6

15896211

NUT,M6, Cl 8

1шт.

7

87615630

BRACKET

1шт.

8

84185527

LIGHT,12V, 21W, Clear

TAIL LAMP

1шт.

9

84251791

WIRE HARNESS

Reverse Alarm To Lamp

1шт.

10

84266813

BRACKET

1шт.

11

86508813

NUT,M5, Cl 8

M5

2шт.

12

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

13

87615634

REVERSE ALARM

1шт.
