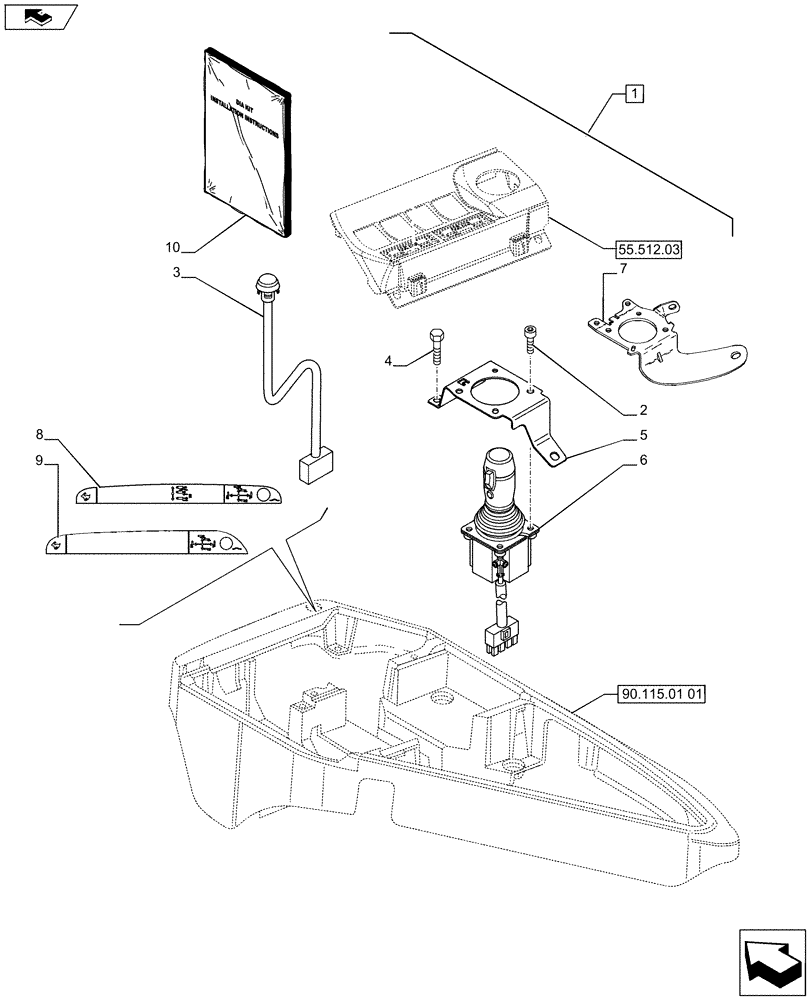

Запчасти Case IH PUMA 200 (88.055.21) - DIA KIT - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE (88) - ACCESSORIES

1

719300024

DIA KIT, TRACTOR

Electronic Joystick with Proportional Simultaneous Control of 3rd Function, Contains Ref. 2-9 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

3

87485775

SWITCH ASSY

1шт.

4

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

5

84202338

BRACKET

1шт.

6

84208738

JOYSTICK

1шт.

84208738R

REMAN-JOYSTICK

PUMA 170, PUMA 185, PUMA 200, PUMA 215 ALL (12/10-)

1шт.

84208738C

CORE-JOYSTICK

Return Number

1шт.

7

84150720

HOLDER

1шт.

8

84126448

DECAL

1шт.

LH Side Position on Command Arm

1шт.

8

84128820

DECAL

1шт.

9

84126450

DECAL

1шт.

10

84213411

INSTRUCTION

1шт.
