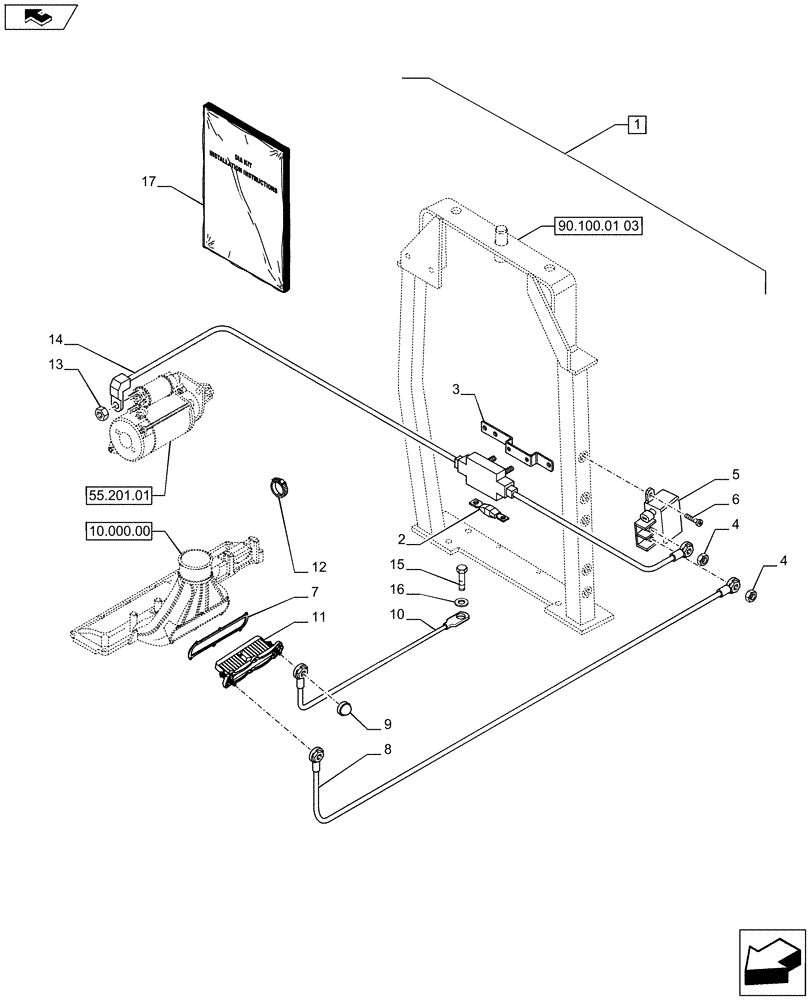

Запчасти Case IH PUMA 200 (88.055.15) - DIA KIT - GRID HEATER (88) - ACCESSORIES

1

718203034

HEATER

Dia Kit, Tractor, Grid Heater, Contains Ref. 2-16 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

11056290

FUSE,125A, Maxi

125 AMP

1шт.

3

87570805

BRACKET

1шт.

4

12574211

NUT,M6 x 1, Cl 8

2шт.

5

82022813

RELAY,12V, High Current

1шт.

6

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

2шт.

7

2854701

GASKET,0.8mm Thk

1шт.

8

82036464

ELECTRIC CABLE,650mm L

1шт.

9

87533425

COVER,M6

M6

4шт.

10

87316233

ELECTRIC CABLE

1шт.

11

2854837

HEATER

1шт.

12

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

2шт.

13

15896211

NUT,M6, Cl 8

1шт.

14

84243701

WIRE HARNESS

Grid Heater, Contains Ref. 2

1шт.

15

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

16

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

17

84134134

INSTRUCTION

1шт.
