Запчасти Case IH PUMA 200 (88.037.19) - DIA KIT - K80 BALL STEERING GUIDE (88) - ACCESSORIES

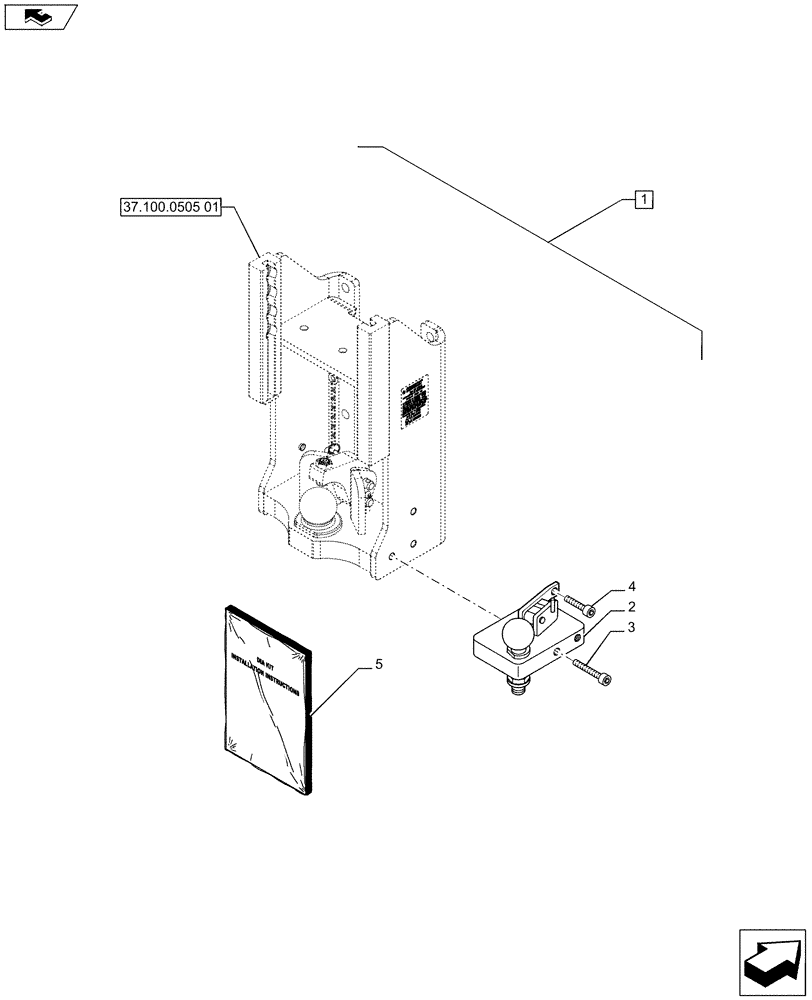

Схема запчастей Case IH PUMA 200 - (88.037.19) - DIA KIT - K80 BALL STEERING GUIDE (88) - ACCESSORIES
3
5
2
1
4
37.100.0505 01
home

Артикул

Название

Примечание

Количество

1

710534014

DIA KIT, TRACTOR

Steering Guides for K80 Ball Hitch, Contains Ref. 2-4 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87478039

DRAW HOOK

1шт.

3

11120134

SCREW,M16 x 110mm

4шт.

4

11119034

SCREW,M16 x 55mm

2шт.

5

84134788

INSTRUCTION

1шт.

Выбрано товаров: 6
