(88.037.11) - DIA KIT - REAR WHEEL WEIGHTS (2 X 91 KG)

Запчасти Case IH PUMA 200 (88.037.11) - DIA KIT - REAR WHEEL WEIGHTS (2 X 91 KG) (88) - ACCESSORIES

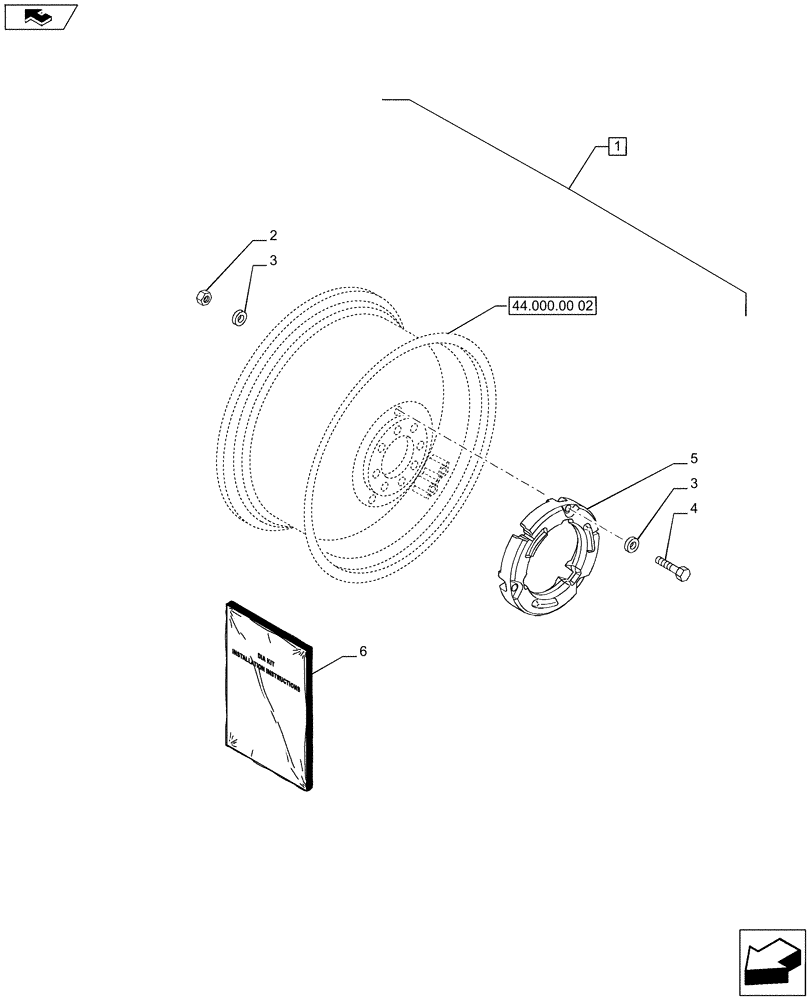

Схема запчастей Case IH PUMA 200 - (88.037.11) - DIA KIT - REAR WHEEL WEIGHTS (2 X 91 KG) (88) - ACCESSORIES
44.000.00 02
home
4
5
6
3
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719672006

DIA KIT, TRACTOR

Rear Wheel Weights 2x200 Lbs, Contains Ref. 2-5 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

412066

NUT,M16 x 2.0, Cl 8

6шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

4

87393412

BOLT,Hex, M16 x 130mm, Cl 10.9

6шт.

5

405828A1

WHEEL WEIGHT

200 Lbs - 91 kg

2шт.

6

87485324

INSTRUCTION

1шт.
