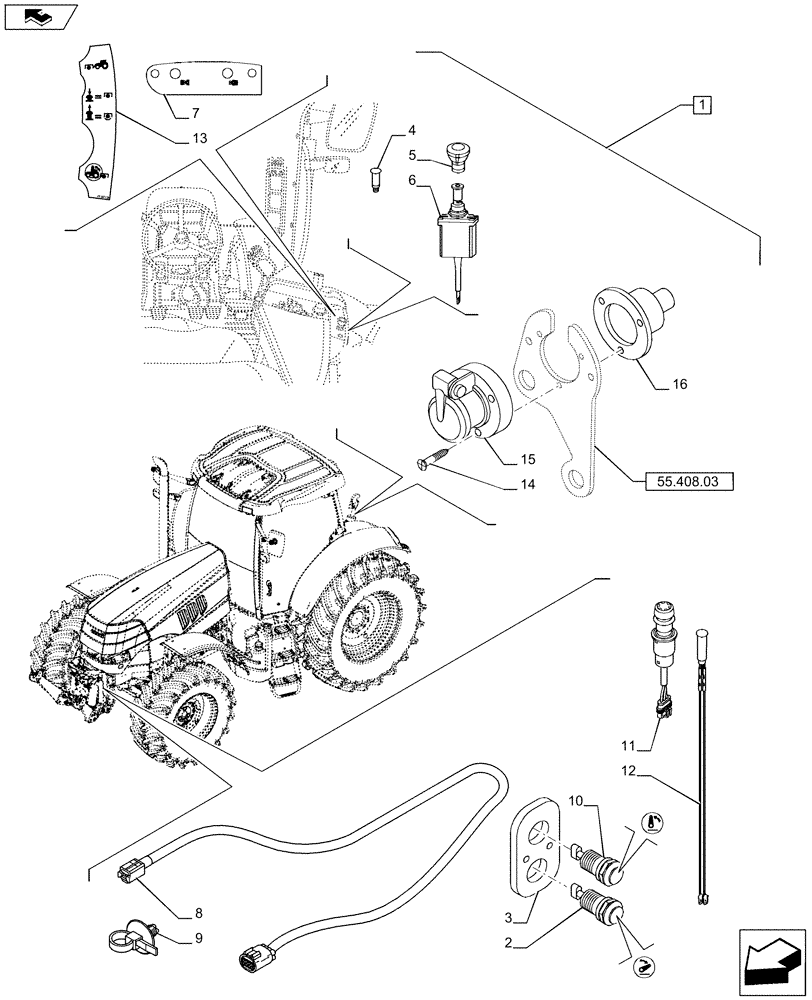

Запчасти Case IH PUMA 200 (88.035.09[03]) - DIA KIT - FRONT HPL FOR MID MOUNT REMOTES WITH PTO, WITH AUX. COUPLERS - SWITCHES (88) - ACCESSORIES

1

710066084

Front Linkage for Mid Mount Remotes with PTO, with Aux. Couplers, Contains Ref. 2-16

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87339137

SWITCH ASSY

Front Hitch Lower, External RH

1шт.

3

87348408

MOUNTING PARTS

1шт.

4

47056319

WARNING LIGHT

3шт.

5

87638633

KNOB

1шт.

6

84218194

SWITCH ASSY

1шт.

7

87725492

DECAL

1шт.

8

87311800

WIRE HARNESS

1шт.

9

82033028

CABLE TIE,170mm L

2шт.

10

87339136

SWITCH ASSY

Front Hitch Raise, External LH

1шт.

11

87605071

SWITCH ASSY

1шт.

12

82036455

WARNING LIGHT

Contains Ref. 4

1шт.

13

87556490

DECAL

1шт.

14

260-14524

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

3шт.

15

83959716

POWER SOCKET,7 Pins

1шт.

16

82013268

BOOT

1шт.
