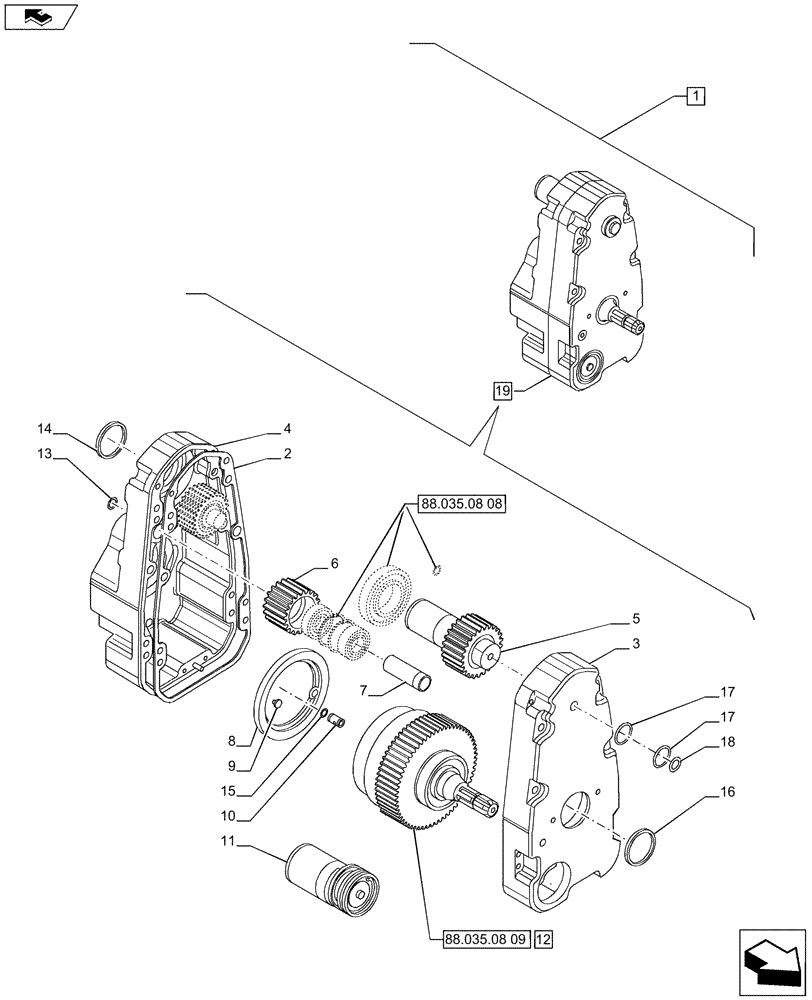

Запчасти Case IH PUMA 200 (88.035.08[07]) - DIA KIT - FRONT HPL FOR ELECTRONIC REMOTES WITH PTO, LESS AUX. COUPLERS - GEARBOX - BREAKDOWN (88) - ACCESSORIES

1

710064114

Front Linkage for Electronic Remote with PTO, less Aux. Couplers, Contains Ref. 2-19

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87543732

GASKET

1шт.

3

87476099

HOUSING

Front

1шт.

4

87476098

HOUSING

Back

1шт.

5

87476097

PINION

Final Z30

1шт.

6

87711527

PINION

2шт.

7

87711894

PIN

2шт.

8

87711899

RING

1шт.

9

87712134

BOLT

2шт.

10

87712136

VALVE POPPET

1шт.

11

87543729

HYDRAULIC PUMP

1шт.

12

87712183

CLUTCH

1шт.

13

87737952

O-RING,2.5mm Thk x 18mm ID, 70 Duro

18mm x 2.5mm

1шт.

15

9626932

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

1.5 x 9mm

1шт.

14

87712460

SEAL

75 x 60 x 8mm

1шт.

16

87712463

SEAL

1шт.

17

87713415

O-RING,3mm Thk x 40mm ID

2шт.

18

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

1шт.

19

87745486

GEARBOX

ASSY, Contains Ref. 2-18

1шт.
