Запчасти Case IH PUMA 200 (88.035.08[03]) - DIA KIT - FRONT HPL FOR ELECTRONIC REMOTES WITH PTO, LESS AUX. COUPLERS - PIPES AND BRACKETS (88) - ACCESSORIES

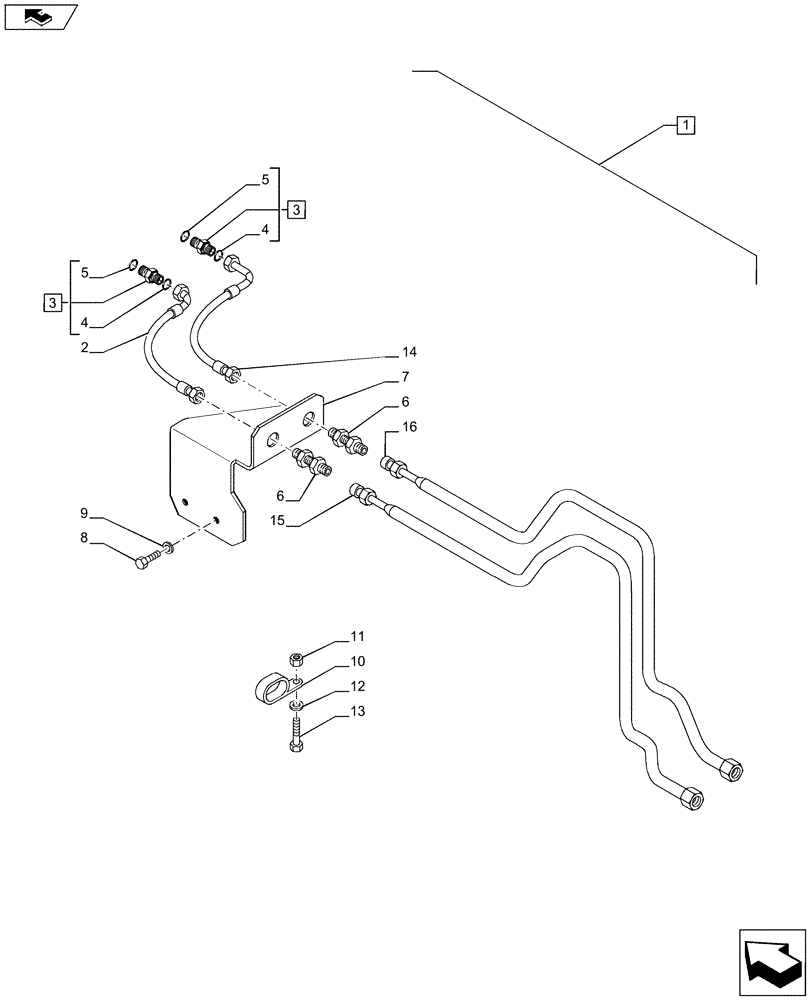

Схема запчастей Case IH PUMA 200 - (88.035.08[03]) - DIA KIT - FRONT HPL FOR ELECTRONIC REMOTES WITH PTO, LESS AUX. COUPLERS - PIPES AND BRACKETS (88) - ACCESSORIES
4
5
home
16
14
6
11
6
12
1
8
13
15
10
3
3
5
9
4
2
7

Артикул

Название

Примечание

Количество

1

710064094

Front Linkage for Electronic Remote with PTO, less Aux. Coupler, Contains Ref. 2-16

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87331296

FLEXIBLE HOSE

1шт.

3

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

Contains Ref. 4-5

2шт.

4

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

82039603

HYD CONNECTOR

2шт.

7

84201723

SUPPORT

1шт.

8

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

10

82023568

CLAMP,2 Hoses

1шт.

11

15896211

NUT,M6, Cl 8

1шт.

12

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

14

87590684

FLEXIBLE HOSE

1шт.

15

87713700

HYD TUBE

1шт.

16

87330961

HYD TUBE

1шт.

Выбрано товаров: 17
