Запчасти Case IH PUMA 200 (88.035.08[02]) - DIA KIT - FRONT HPL FOR ELECTRONIC REMOTES WITH PTO, LESS AUX. COUPLERS - OIL COOLER AND SHAFT PTO (88) - ACCESSORIES

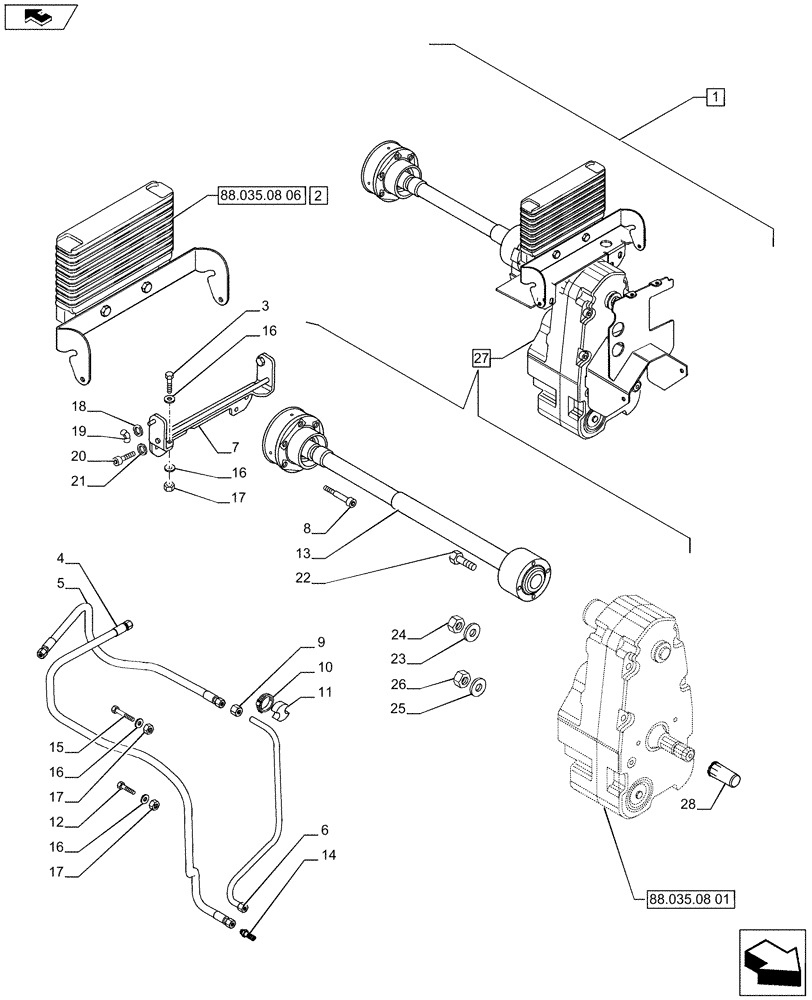

Схема запчастей Case IH PUMA 200 - (88.035.08[02]) - DIA KIT - FRONT HPL FOR ELECTRONIC REMOTES WITH PTO, LESS AUX. COUPLERS - OIL COOLER AND SHAFT PTO (88) - ACCESSORIES
7
23
16
17
13
27
25
10
19
11
1
88.035.08 06
home
12
16
8
2
21
16
28
17
24
4
22
9
17
20
88.035.08 01
3
14
5
16
18
6
15
26

Артикул

Название

Примечание

Количество

1

710064094

Front Linkage for Electronic Remote with HPL, less Aux. Coupler, Contains Ref. 2-28

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84177631

OIL COOLER

ASSY

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

84152461

HOSE

1шт.

5

84152462

HOSE,99.00 mm ID x 650.00 mm

1шт.

6

84123850

HYD TUBE

1шт.

7

87663692

BRACKET

1шт.

8

87515210

HEX SOC SCREW,M12 x 70mm, Cl 12.9

6шт.

9

84123854

NUT

1шт.

10

84123856

HOSE CLAMP

1шт.

11

84123855

HOSE CLAMP

1шт.

12

84123872

BOLT

1шт.

13

87589274

PTO SHAFT

1шт.

14

87737377

HYD CONNECTOR

1шт.

15

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

1шт.

16

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

10шт.

17

9706690

NUT,M8 x 1.25, Cl 8

4шт.

18

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

19

87662219

WING NUT

2шт.

20

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

21

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

22

87515209

HEX SOC SCREW,M10 x 75mm, Cl 12.9

4шт.

23

87343481

WASHER,25mm ID x 44mm OD x 4mm Thk

4шт.

24

87391840

NUT,M24 x 3, Class 10.9

4шт.

25

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

2шт.

26

12163524

NUT

2шт.

27

87476100

FRONT PTO ASSY

1шт.

28

87515212

PROTECTIVE COVER

1шт.

Выбрано товаров: 29
