Запчасти Case IH PUMA 200 (88.035.07[07]) - DIA KIT - FRONT HPL FOR ELECTRONIC/MECHANICAL REMOTES LESS PTO, LESS AUX. COUPLERS - SWITCHES (88) - ACCESSORIES

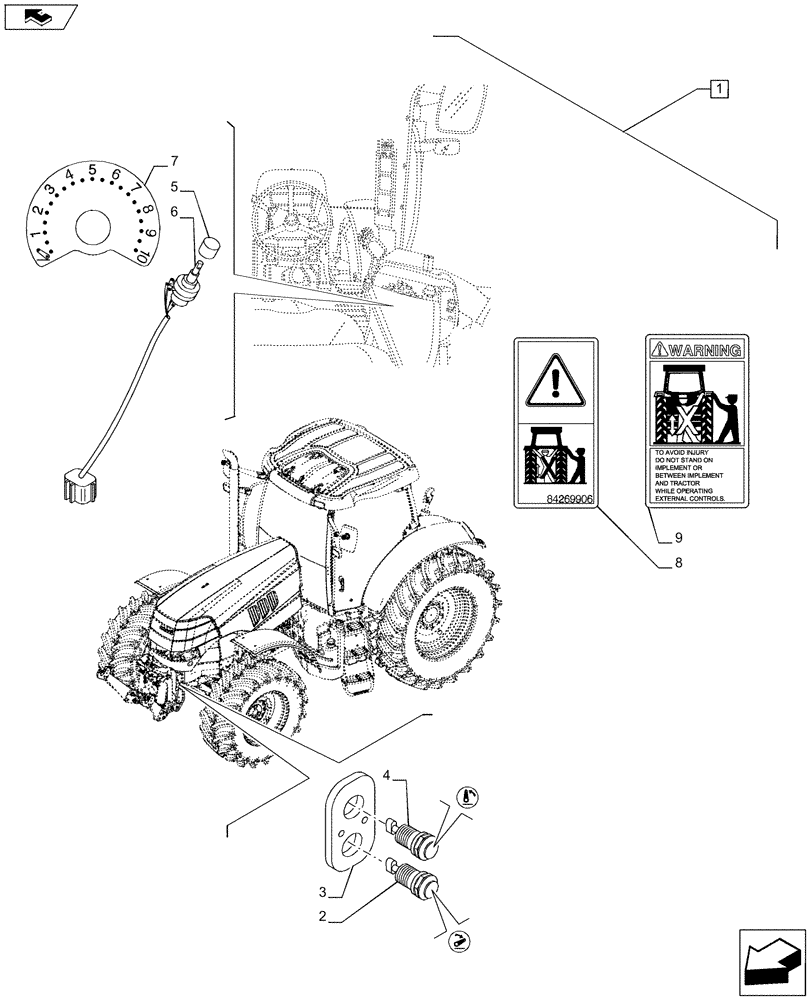

Схема запчастей Case IH PUMA 200 - (88.035.07[07]) - DIA KIT - FRONT HPL FOR ELECTRONIC/MECHANICAL REMOTES LESS PTO, LESS AUX. COUPLERS - SWITCHES (88) - ACCESSORIES
2
4
3
home
6
1
5
8
9
7

Артикул

Название

Примечание

Количество

1

710062064

Front Linkage for Electronic/Mechanical remote less PTO, less Aux. Coupler, Contains Ref. 2-9

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87339137

SWITCH ASSY

Front Hitch Lower, External RH

1шт.

3

87348408

MOUNTING PARTS

1шт.

4

87339136

SWITCH ASSY

Front Hitch Raise, External LH

1шт.

5

87346620

KNOB

1шт.

6

82006115

POTENTIOMETER

1шт.

7

87498611

DECAL

1шт.

8

84269906

DECAL

1шт.

9

87307968

DECAL

1шт.

Выбрано товаров: 10
