Запчасти Case IH PUMA 200 (88.035.05[02A]) - DIA KIT - MECHANICAL REAR REMOTES - CONTROL VALVE - D7411 (88) - ACCESSORIES

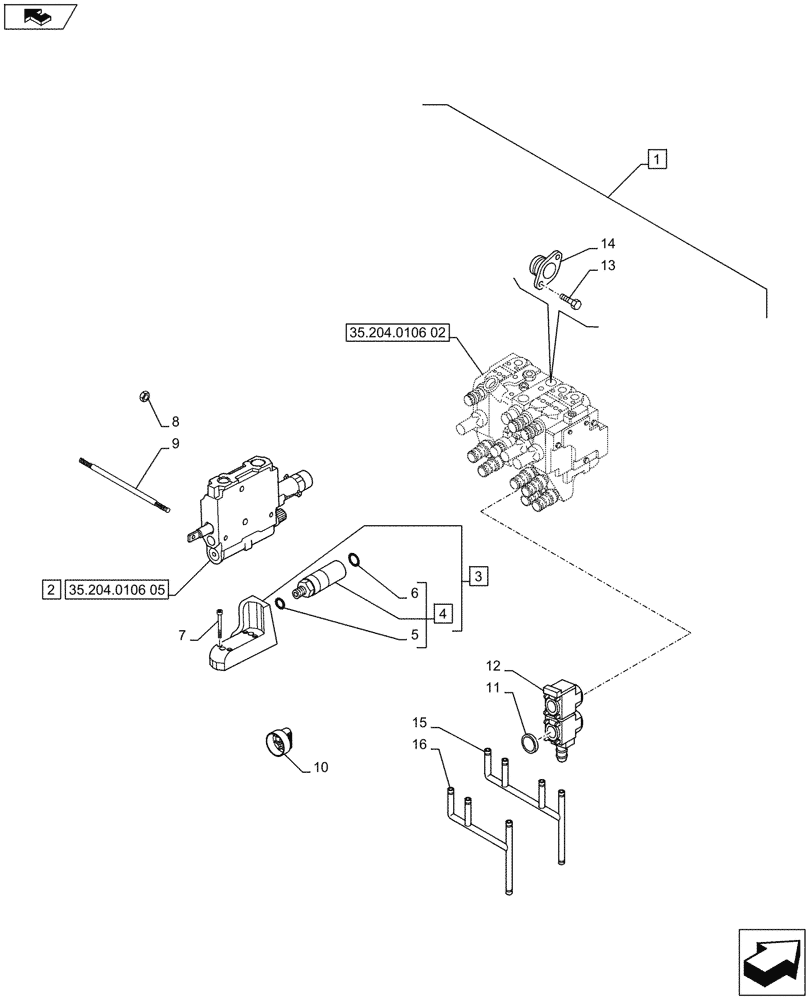

Схема запчастей Case IH PUMA 200 - (88.035.05[02A]) - DIA KIT - MECHANICAL REAR REMOTES - CONTROL VALVE - D7411 (88) - ACCESSORIES
35.204.0106 02
13
4
home
9
3
8
12
2
11
7
5
6
10
14
1
15
16
35.204.0106 05

Артикул

Название

Примечание

Количество

1

710652014

DIA KIT, TRACTOR

Mechanical Remotes Controller, Contains Ref. 2 - 17

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See also Figure 88.035.05 (01) and 88.035.05 (03)

1шт.

2

87313431

VALVE SECTION

ASSY

1шт.

2

87313431R

REMAN-HYD VALVE

1шт.

2

87313431C

CORE-VALVE HYD

Return Number

1шт.

3

87381984

HYDRAULIC MANIFOLD

is faster 4bm13, ASSY, Contains Ref. 4

1шт.

4

87381944

COUPLING, QUICK, FEM

ASSY, Contains Ref. 5, 6

2шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

87382012

SEAL KIT

1шт.

7

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

4шт.

8

5195169

NUT,M8

3шт.

9

5195170

BOLT

3шт.

9

5191753

BOLT

6шт.

10

87531920

KNOB

2шт.

11

82029895

DISC,20mm D, Black

Black

2шт.

12

84253930

DUST CAP,56.5mm H x 128mm L x 39.5mm Thk

1шт.

13

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

2шт.

14

5189606

SUPPORT

1шт.

15

84253969

FLEXIBLE HOSE,8mm ID x 1030mm L

2 Way

1шт.

16

84378823

FLEXIBLE HOSE

3 Way for FHPL

1шт.

Выбрано товаров: 21
