Запчасти Case IH PUMA 200 (88.035.05[01]) - DIA KIT - MECHANICAL REAR REMOTES - LEVERS (88) - ACCESSORIES

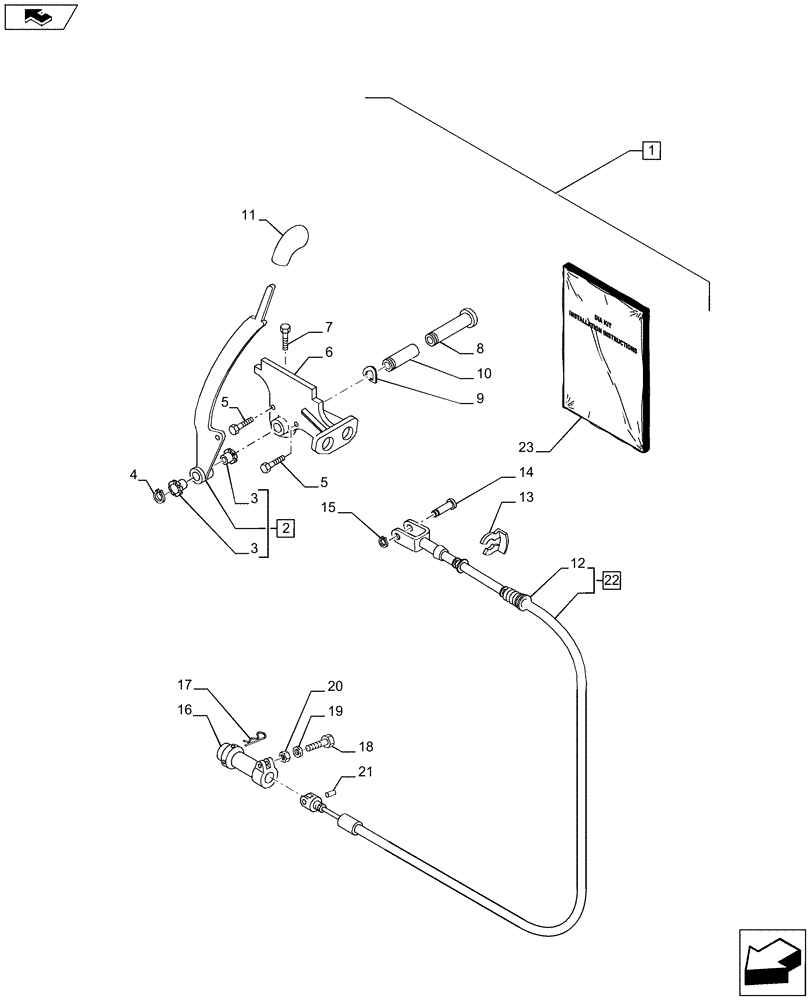

Схема запчастей Case IH PUMA 200 - (88.035.05[01]) - DIA KIT - MECHANICAL REAR REMOTES - LEVERS (88) - ACCESSORIES
5
9
5
6
19
10
13
11
8
23
3
16
18
3
4
21
7
15
1
12
20
22
home
2
14
17

Артикул

Название

Примечание

Количество

1

710652014

DIA KIT, TRACTOR

Mechanical Remotes Controller, Contains Ref. 2-22 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See also Figure 88.035.05 (02) and 88.035.05 (03)

1шт.

2

82036839

LEVER

ASSY, 3rd and 4th, Contains Ref. 3

1шт.

3

82035633

BUSHING

2шт.

4

11088171

SNAP RING,M11

1шт.

5

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

6

87308465

HOUSING

1шт.

7

13806421

SET SCREW,Hex Soc, M6 x 8mm

1шт.

8

82035628

HEADED PIN,11.98mm OD x 95mm L

1шт.

9

81819651

SPRING WASHER,13mm ID x 19mm OD

1шт.

10

82035996

SPACER,12mm ID x 20mm OD x 26mm L

1шт.

11

87302203

KNOB

Black

1шт.

11

87302206

KNOB

Ginger

1шт.

11

82037912

KNOB

1шт.

11

82037913

KNOB

1шт.

12

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

13

82007837

LOCKING RING

1шт.

14

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

1шт.

15

11087771

LOCKING RING

1шт.

16

87356033

COUPLING,25mm ID x 35mm OD x 97mm L

1шт.

17

82026318

COTTER PIN,1/8 x 2 5/16

2шт.

18

10903234

BOLT,Hex, M6 x 40mm, Cl 10.9

1шт.

18

10903034

SCREW

1шт.

19

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

1шт.

20

15896224

NUT,Hex, M6

1шт.

21

82001332

PIN,6.35mm OD x 16mm L

1шт.

22

87308462

BOWDEN CONTROL

ASSY, Contains Ref. 12

1шт.

23

84139289

INSTRUCTION

1шт.

Выбрано товаров: 29
