Запчасти Case IH PUMA 200 (88.033.10[04]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UK) - LOGIC VALVE DELIVERY PIPE (88) - ACCESSORIES

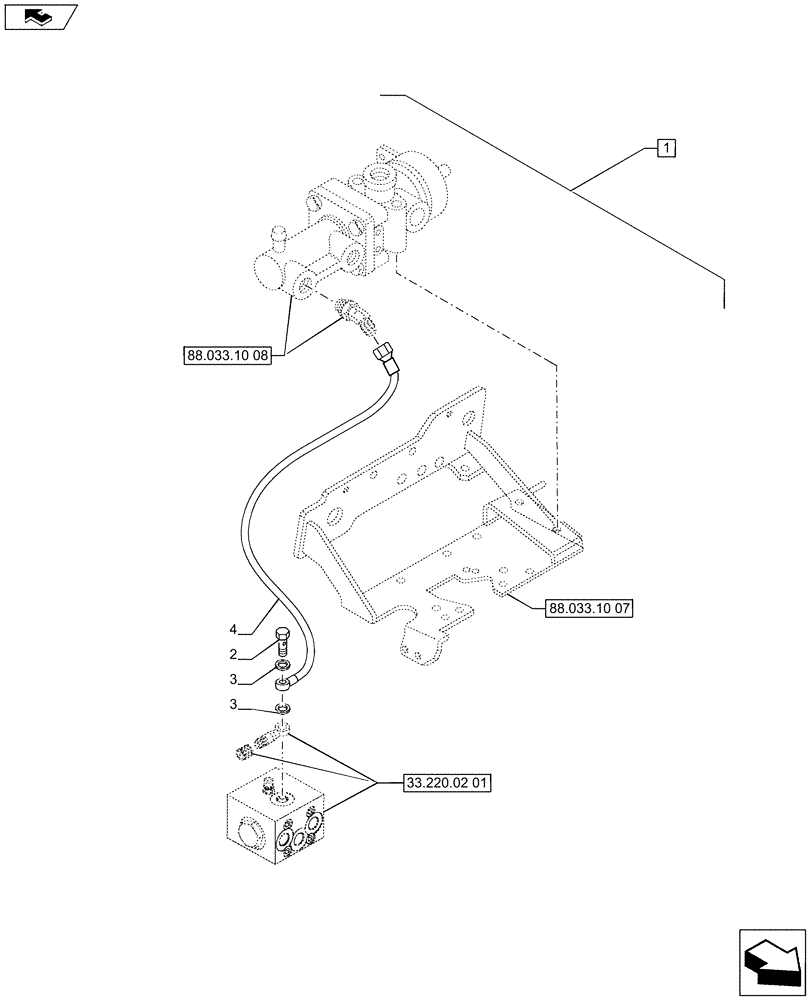

Схема запчастей Case IH PUMA 200 - (88.033.10[04]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UK) - LOGIC VALVE DELIVERY PIPE (88) - ACCESSORIES
4
33.220.02 01
home
88.033.10 08
88.033.10 07
1
3
2
3

Артикул

Название

Примечание

Количество

1

710178204

DIA KIT, TRACTOR

Pneumatic Trailer Brake (UK), Contains Ref. 2-4

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

3

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

4

87624161

HOSE

1шт.

Выбрано товаров: 5
