Запчасти Case IH PUMA 200 (88.033.09[03]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - PIPES (88) - ACCESSORIES

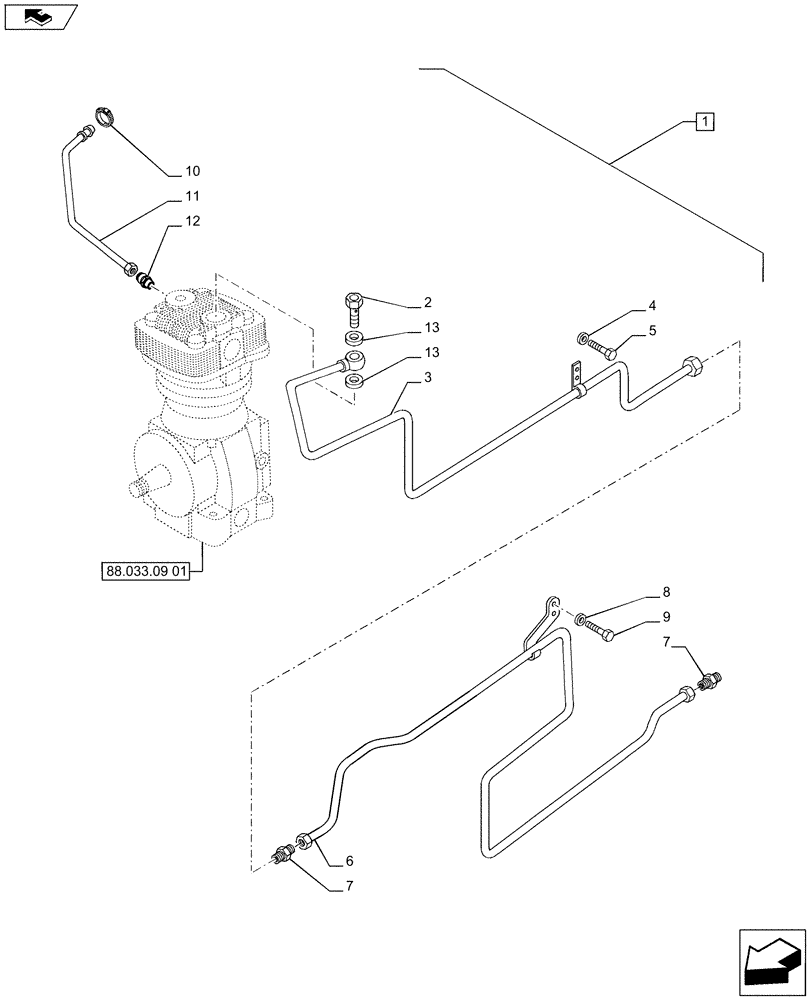

Схема запчастей Case IH PUMA 200 - (88.033.09[03]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - PIPES (88) - ACCESSORIES
13
9
11
13
12
8
7
6
88.033.09 01
2
home
1
10
7
3
4
5

Артикул

Название

Примечание

Количество

1

719385204

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Universal), Contains Ref. 2-13

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82031550

BANJO BOLT,M26 x 1.50

, Serial Range: -C7154

1шт.

2

84385706

BANJO BOLT,M26 x 1.5 x 50mm

, Start Serial: D7154

2шт.

3

84181236

PIPE

1шт.

4

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8 x 17

1шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

6

84190371

PIPE

1шт.

7

82024503

HYD CONNECTOR,7/8"-14 x 7/8"-14

2шт.

8

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

6 x 20

1шт.

10

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

1шт.

11

84322222

RIGID TUBE

1шт.

12

82038496

HYD CONNECTOR

1шт.

13

82031552

COPPER WASHER,26.1mm ID x 32mm OD x 1.5mm Thk

M26 x 32 x 1.5

2шт.

Выбрано товаров: 15
