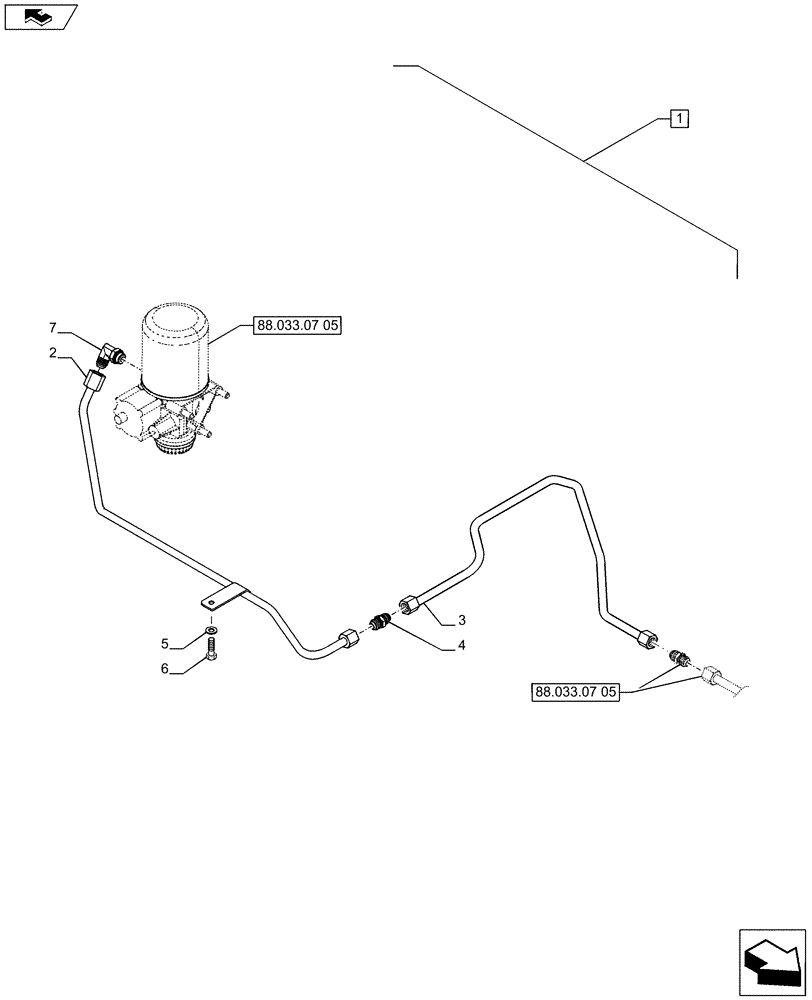

Запчасти Case IH PUMA 200 (88.033.07[09]) - DIA KIT - PNEUMATIC TRAILER BRAKE (ITALY) - REGENERATION AIR DRYER PIPES (88) - ACCESSORIES

1

718385204

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Italy), Contains Ref. 2-7

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84286887

HYD TUBE

1шт.

3

84338241

PIPE

1шт.

4

82024503

HYD CONNECTOR,7/8"-14 x 7/8"-14

1шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

7

86512932

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.
