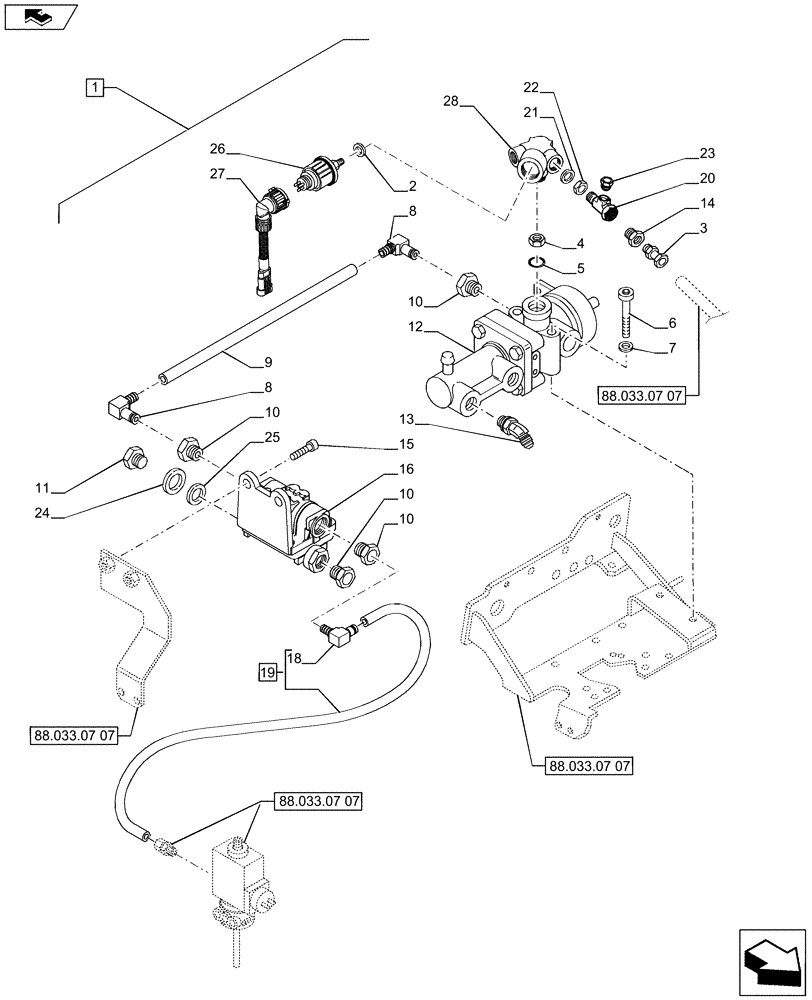

Запчасти Case IH PUMA 200 (88.033.07[08]) - DIA KIT - PNEUMATIC TRAILER BRAKE (ITALY) - CONTROL VALVE AND RELEVANT PARTS (88) - ACCESSORIES

1

718385204

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Italy), Contains Ref. 2-28

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

3

82006828

ADAPTER

1шт.

4

82019796

LOCK NUT

1шт.

5

82019797

O-RING,2.5mm Thk x 14mm ID

1шт.

6

14308934

HEX SOC SCREW,M8 x 1.25 x 60mm, Cl 10.9

2шт.

7

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.

8

87588080

90 ELBOW,NG8 x 12mm D

2шт.

9

84157672

FLEXIBLE HOSE,12.00mm OD x 123.00mm

Contains Ref. 8

1шт.

10

87588079

HYD CONNECTOR,M16 x 1.5

1шт.

11

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

1шт.

12

82030571

TRAILER BRAKE VALVE

1шт.

13

87588084

HYD CONNECTOR,M10 x 1

1шт.

14

87570885

ADAPTER

1шт.

15

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

16

84157669

VALVE

1шт.

17

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

1шт.

18

82036158

ELBOW,9.1mm OD x 31.5mm, 6x1Tube

1шт.

19

84157675

FLEXIBLE HOSE,436.00 mm

Contains Ref. 18

1шт.

20

87714794

HYD CONNECTOR,M22 x 1.5

1шт.

21

82039003

O-RING

1шт.

22

82039004

LOCK NUT

1шт.

23

82034157

ADAPTER

1шт.

24

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

25

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

26

87564377

SENSOR,M12 x 1.5

1шт.

27

87564372

WIRE HARNESS

1шт.

28

87588083

HYD CONNECTOR,M16 x 1.5

1шт.
