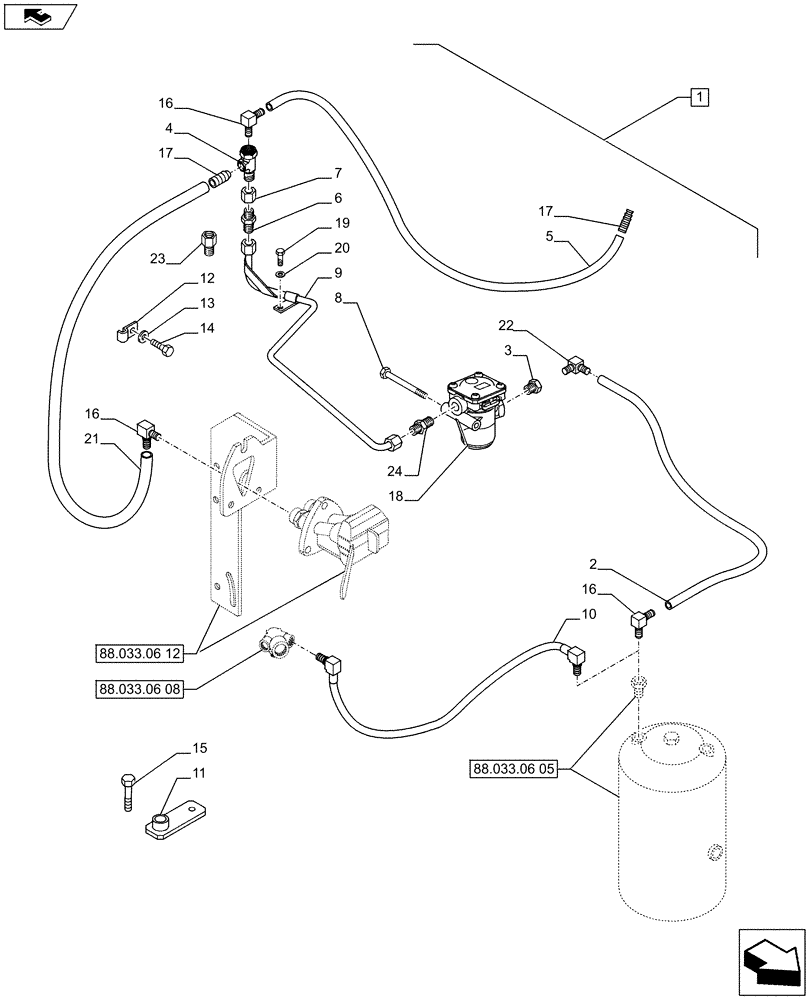

Запчасти Case IH PUMA 200 (88.033.06[06]) - DIA KIT - PNEUMATIC TRAILER BRAKE (ITALY) - PIPES (88) - ACCESSORIES

1

718385194

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Italy), Contains Ref. 2-24

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84181238

TUBE,12.00mm OD x 260.00mm

Contains Ref. 16,22

1шт.

Reservoir To Dryer

1шт.

3

87588079

HYD CONNECTOR,M16 x 1.5

1шт.

4

84185248

HYD CONNECTOR

1шт.

5

84174057

TUBE,12.00mm OD x 750.00mm

Contains Ref. 16,17

1шт.

Valve To DLCV

1шт.

6

84181658

HYD CONNECTOR

, Serial Range: -C7198

1шт.

7

84174059

HYD CONNECTOR

, Serial Range: -C7198

1шт.

8

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

1шт.

9

84181240

PIPE

1шт.

Valve To DLCV

1шт.

10

87519551

BRAKE LINE,7.5 mm ID x 10 mm OD x 1600 mm L

1шт.

11

84317379

BRACKET

2шт.

12

5178447

BRACKET

2шт.

13

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

14

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

16

82038479

90 ELBOW,NG12 x 12mm D

3шт.

17

87588082

HYD CONNECTOR,M12 x 1.5

1шт.

18

84372823

VALVE

1шт.

19

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

20

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

21

84181246

FLEXIBLE HOSE

1шт.

22

87588080

90 ELBOW,NG8 x 12mm D

1шт.

23

84425324

HYD CONNECTOR,M22 x 1.5 x 40mm L

, Start Serial: D7198

1шт.

24

84382417

HYD CONNECTOR,M16 x 1.5 x 38mm L

1шт.
