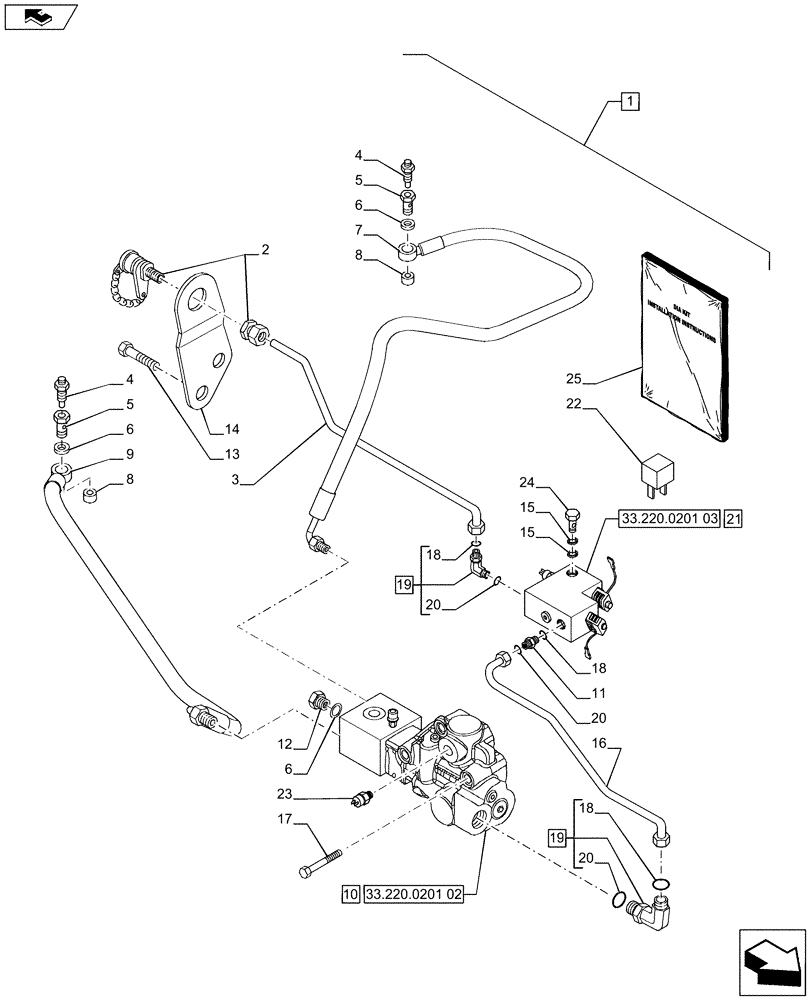

Запчасти Case IH PUMA 200 (88.033.03) - DIA KIT - HYDRAULIC TRAILER BRAKE (ITALY) (88) - ACCESSORIES

1

710418104

DIA KIT, TRACTOR

Hydraulic Trailer Brake - Italy, Contains Ref. 2-24 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

44015354

QUICK MALE COUPLING

1шт.

3

47123576

HYD TUBE

1шт.

4

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

5

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

6

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

3шт.

7

87635545

HYDRAULIC HOSE,4.75mm ID x 820mm L

Left Brake

1шт.

8

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

9

87635543

HYDRAULIC HOSE

Right Brake

1шт.

10

47135625

BRAKE VALVE

1шт.

11

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

Incl. 18, 20

1шт.

12

47131496

PLUG,Hex, M12 x 1

12 x 1

2шт.

13

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

5196322

BRACKET

1шт.

15

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

16

87396169

PIPE

1шт.

17

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

17

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

18

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

19

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Contains Ref. 18,20

2шт.

20

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

21

5196175

BRAKE VALVE

1шт.

22

82023238

RELAY,12V, 20A

2шт.

23

87604423

SWITCH ASSY

1шт.

24

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

25

82998970

INSTRUCTION

1шт.
