Запчасти Case IH PUMA 200 (88.033.02) - DIA KIT - HYDRAULIC TRAILER BRAKE (UNIVERSAL) (88) - ACCESSORIES

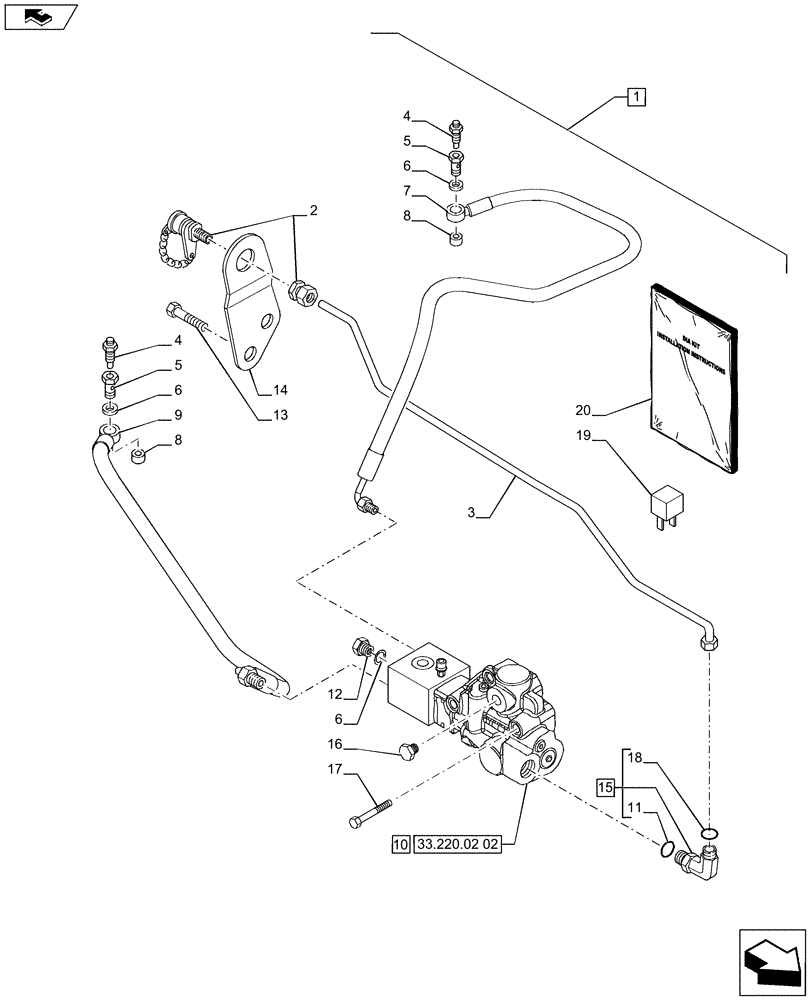

Схема запчастей Case IH PUMA 200 - (88.033.02) - DIA KIT - HYDRAULIC TRAILER BRAKE (UNIVERSAL) (88) - ACCESSORIES
6
19
16
15
4
12
11
17
5
2
7
4
13
1
8
8
6
9
5
6
18
home
33.220.02 02
20
14
3
10

Артикул

Название

Примечание

Количество

1

710414084

DIA KIT, TRACTOR

Hydraulic Trailer Brake - Universal Type, Contains Ref. 2-19 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

44015354

QUICK MALE COUPLING

1шт.

3

87396167

PIPE

1шт.

4

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

5

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

6

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

3шт.

7

87635545

HYDRAULIC HOSE,4.75mm ID x 820mm L

Left Brake

1шт.

8

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

9

87635543

HYDRAULIC HOSE

Right Brake

1шт.

10

47135618

BRAKE VALVE

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

12

47131496

PLUG,Hex, M12 x 1

12 x 1

2шт.

13

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

5196322

BRACKET

1шт.

15

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Contains Ref. 18,20

1шт.

16

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

17

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

17

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

18

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

19

82023238

RELAY,12V, 20A

2шт.

20

82998969

INSTRUCTION

1шт.

Выбрано товаров: 22
