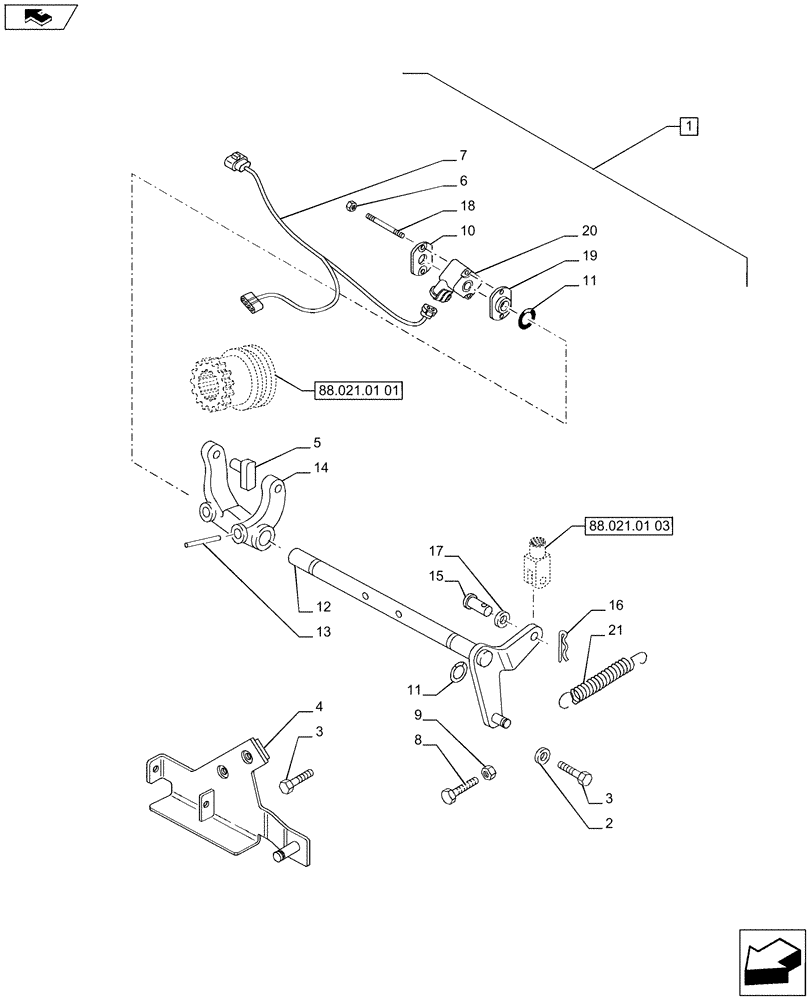

Запчасти Case IH PUMA 200 (88.021.01[02]) - DIA KIT - CREEPER - REDUCTION UNIT CONTROLS (88) - ACCESSORIES

1

710146074

DIA KIT, TRACTOR

Creeper, Contains Ref. 2-21

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

2шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

87302437

SUPPORT

1шт.

5

5152826

SLIDING PAD

2шт.

6

14048611

NUT,M5 x .8, Cl 8

2шт.

7

82028418

WIRE HARNESS

1шт.

8

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

9

16100814

NUT,M8, Cl 8, DAC

2шт.

10

5178336

PLATE

COVER

1шт.

11

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

12

87302436

CONTROL LEVER

1шт.

13

14607270

LOCK PIN,M8 x 40, Slotted

2шт.

14

5148321

LEVER

1шт.

15

10050811

PIN,8mm OD x 22mm L

1шт.

16

10734206

COTTER PIN,2mm OD x 12mm L

1шт.

17

13550301

WASHER

1шт.

18

82014252

STUD,M5

2шт.

19

5188275

PLATE

BRACKET

1шт.

20

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

Synchro Position

1шт.

21

84189604

TENSION SPRING,30mm OD x 120mm L

1шт.
