Запчасти Case IH PUMA 200 (55.440.0201) - TRANSMISSION - ELECTRONIC CONTROL UNITS (55) - ELECTRICAL SYSTEMS

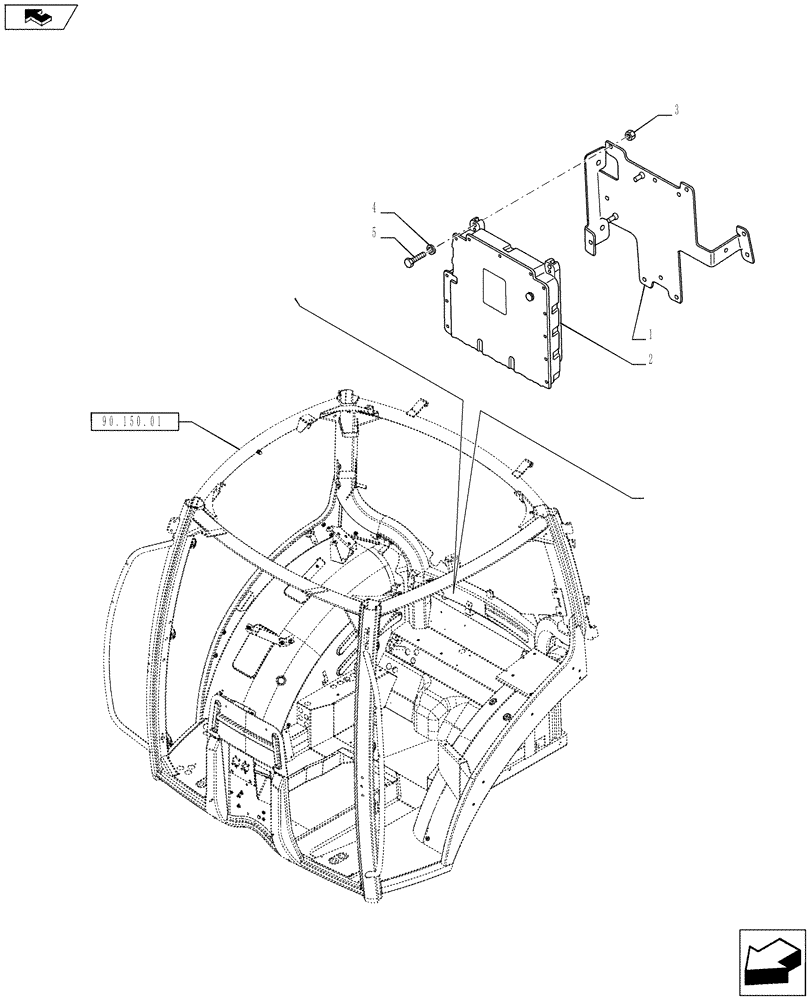

Схема запчастей Case IH PUMA 200 - (55.440.0201) - TRANSMISSION - ELECTRONIC CONTROL UNITS (55) - ELECTRICAL SYSTEMS
2
5
1
90.150.01
home
3
4

Артикул

Название

Примечание

Количество

1

84386733

BRACKET

1шт.

Standard Equipment

1шт.

1

84358215

SUPPORT

1шт.

Slider Tow Hooks with Auto Swivel Coupling (38 mm), VAR.720897

1шт.

2

84374397

ECU

UCM Controller FPS/SPS 40 km/h

1шт.

84374397R

REMAN ELECT CONTROL

PUMA 170, PUMA 185, PUMA 200, PUMA 215 ALL (12/10-)

1шт.

84374397C

CORE-ELECTRONIC CONT

RETURN NUMBER

1шт.

Standard Equipment, 40 KPH Transmission

1шт.

2

84540019

ECU

UCM Controller FPS/SPS 35 km/h (Japan only)

1шт.

30 KPH Transmission (18x6), VAR.729570, Only for Puma 170, Puma 200

1шт.

2

84374396

ECU

UCM Controller FPS/SPS 50 km/h

1шт.

50 KPH Transmission (19x6), VAR.728147

1шт.

3

10720111

NUT,M6, Cl 8

4шт.

4

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

5

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 15
