(37.106.01[03]) - HYDRAULIC AUTO PICK-UP HITCH WITH DRAWBAR - BREAKDOWN (VAR.728248)

Запчасти Case IH PUMA 200 (37.106.01[03]) - HYDRAULIC AUTO PICK-UP HITCH WITH DRAWBAR - BREAKDOWN (VAR.728248) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

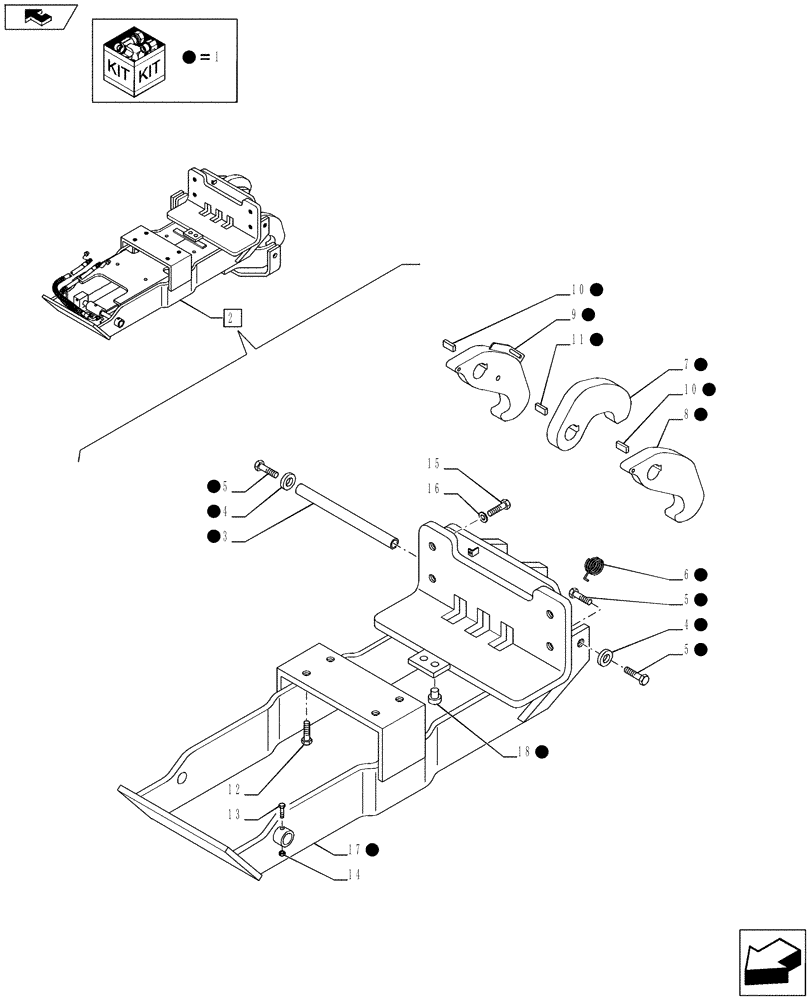

Схема запчастей Case IH PUMA 200 - (37.106.01[03]) - HYDRAULIC AUTO PICK-UP HITCH WITH DRAWBAR - BREAKDOWN (VAR.728248) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
5
15
8
1
17
1
5
5
18
3
14
1
1
1
1
1
1
7
1
1
1
4
9
16
1
10
13
1
10
11
4
1
2
12
1
1
home
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87476081

HITCH BRACKET

ASSY, Contains Ref. 3-11

1шт.

2

87476082

FIXED HITCH

ASSY, Contains Ref. 1,13,14

1шт.

3

82036619

SHAFT

1шт.

4

81870094

SPACER,8.75mm ID x 34.72mm OD x 15.1mm L

2шт.

5

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

82036620

SPRING

LH

1шт.

6

82036621

SPRING

RH

1шт.

7

82036615

LATCH

1шт.

8

87476074

LATCH

LH

1шт.

9

87476073

LATCH

RH

1шт.

10

82039566

KEY

2шт.

11

82036616

KEY

1шт.

12

82018940

BOLT,Flng, M18 x 1.5 x 45mm, Cl 12.9

4шт.

13

16040731

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9, Full Thd

2шт.

14

16104131

NUT,Hex, M8, 1.25mm Pitch

M8 x 1.25

2шт.

15

15984334

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

4шт.

16

82014658

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

4шт.

17

87704264

HITCH BRACKET

1шт.

18

87476078

ELASTIC STOP

2шт.
