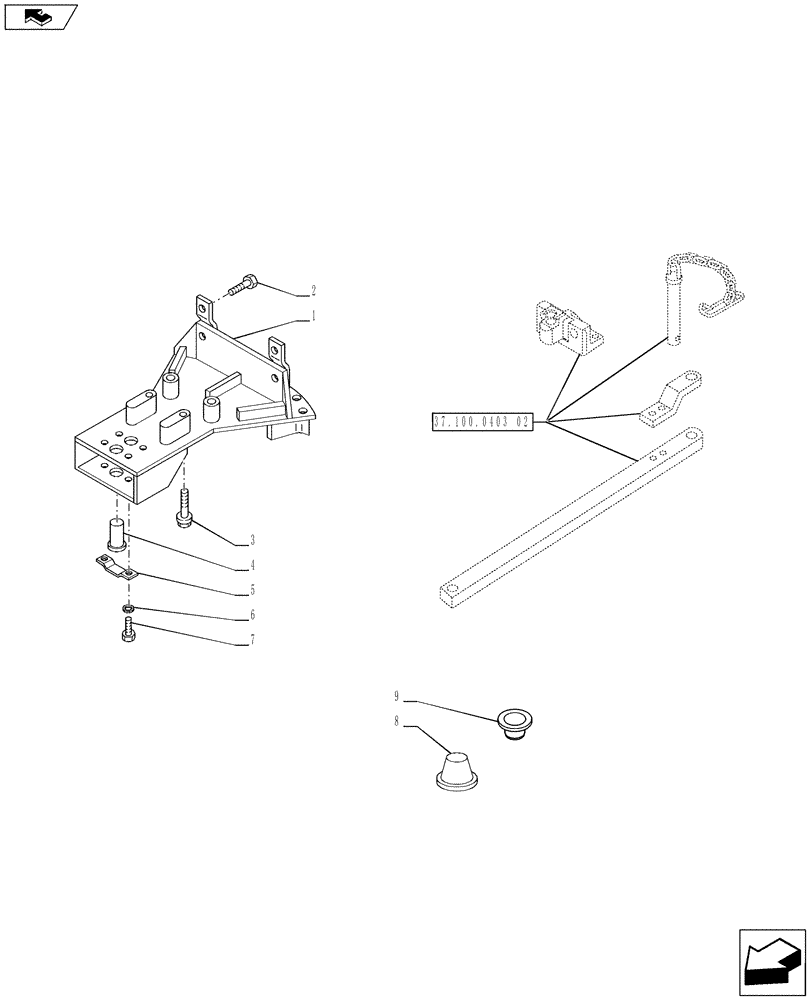

Запчасти Case IH PUMA 200 (37.100.0403[01]) - INDEPENDENT SWINGING DRAWBAR WITH CLEVIS - SWINGING DRAWBAR (VAR.720910) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

82028925

HITCH BRACKET

1шт.

2

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

4шт.

3

82001975

BOLT,Flng, M18 x 1.5 x 80mm, Cl 12.9

4шт.

4

82014774

TOWBAR PIN,32mm OD x 93.5mm L

1шт.

5

82021060

PLATE

1шт.

6

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

2шт.

7

81821509

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

8

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

6шт.

9

84339633

PLASTIC PLUG

2шт.
