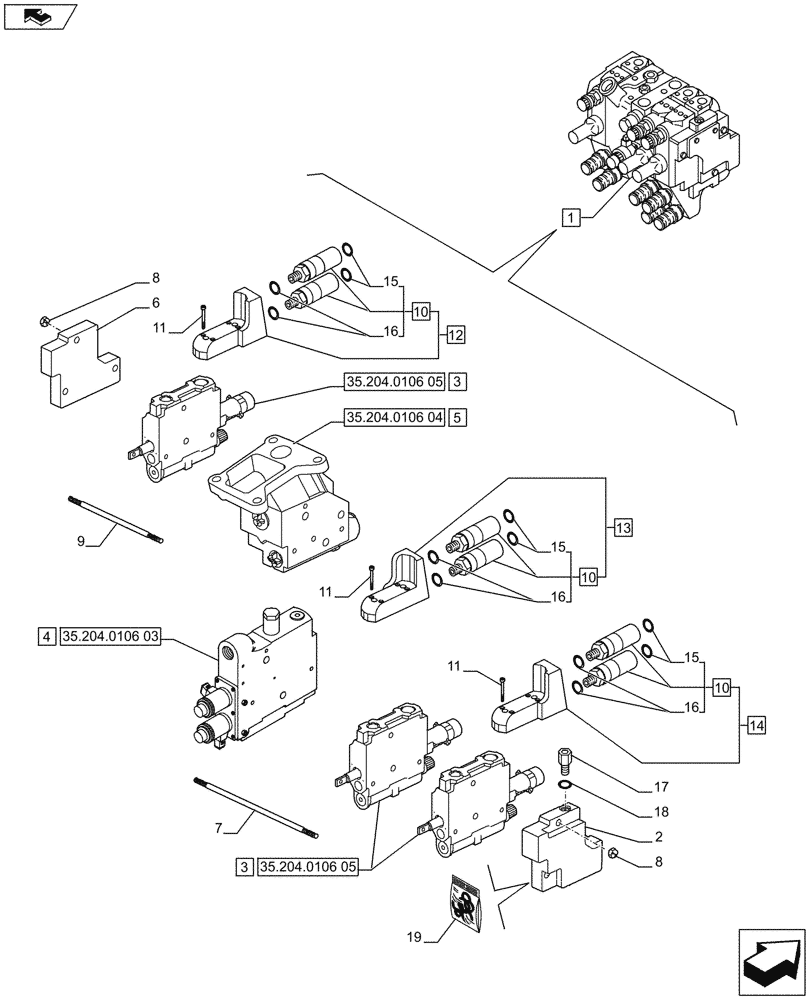

Запчасти Case IH PUMA 200 (35.204.0106[02]) - 3 REMOTE CONTROL VALVES, MECHANICAL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87311372

CONTROL VALVE

ASSY, without Power Beyond

1шт.

2

5195157

COVER

Incl 19 (Seal Kit)

1шт.

3

87313431

VALVE SECTION

ASSY

3шт.

3

87313431R

REMAN-HYD VALVE

3шт.

3

87313431C

CORE-VALVE HYD

Return Number

3шт.

4

84236339

CONTROL VALVE

ASSY, EDC

1шт.

5

47136304

BODY

ASSY

1шт.

6

5190710

PLATE

1шт.

7

5195168

TIE-ROD,M8

3шт.

8

5195169

NUT,M8

6шт.

9

5191753

BOLT

3шт.

10

87381944

COUPLING, QUICK, FEM

ASSY, Incl 15, 16

6шт.

11

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

12шт.

12

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, ASSY, Incl 10

1шт.

13

87381982

HYDRAULIC MANIFOLD

is faster 4bm11, ASSY, Incl 10

1шт.

14

87381981

HYDRAULIC MANIFOLD

is faster 4bm10, ASSY, Incl 10

1шт.

15

87382012

SEAL KIT

6шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

17

5191704

CHECK VALVE

1шт.

18

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

19

47127019

SEAL

1шт.
