Запчасти Case IH PUMA 200 (35.204.0103[02]) - 4 REMOTE CONTROL VALVES, ELECTRONIC, W/ POWER BEYOND COUPLERS, COMPONENTS (VAR.743424-743827 / 743668) (35) - HYDRAULIC SYSTEMS

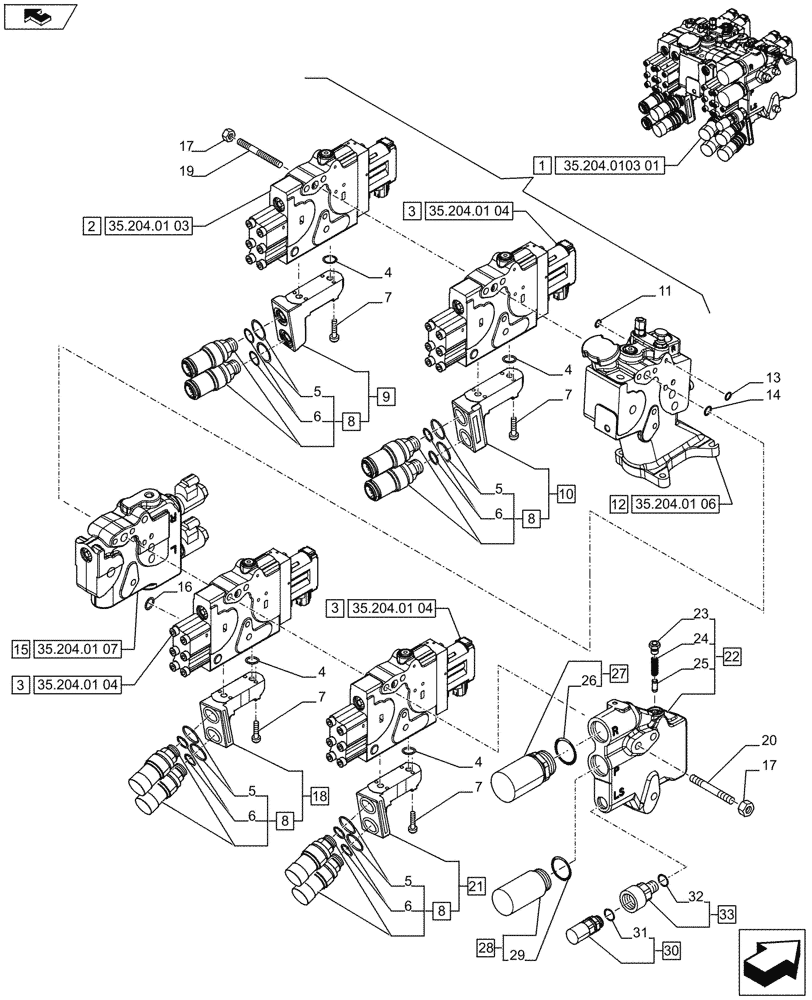

Схема запчастей Case IH PUMA 200 - (35.204.0103[02]) - 4 REMOTE CONTROL VALVES, ELECTRONIC, W/ POWER BEYOND COUPLERS, COMPONENTS (VAR.743424-743827 / 743668) (35) - HYDRAULIC SYSTEMS
35.204.01 03
4
13
18
15
9
6
5
6
19
7
26
3
3
32
6
8
11
6
17
22
28
5
5
5
17
10
2
33
20
16
home
4
8
31
21
3
8
4
29
14
1
24
7
23
7
25
4
7
27
30
8
12
35.204.0103 01
35.204.01 04
35.204.01 04
35.204.01 04
35.204.01 06
35.204.01 07

Артикул

Название

Примечание

Количество

1

87612158

CONTROL VALVE

ASSY, with Power Beyond, Incl 2 - 33, Serial Range: -C7417

1шт.

1

47592932

CONTROL VALVE

ASSY, with Power Beyond, Incl 2 - 33, Serial Range: D7417-C7418

1шт.

1

47594447

CONTROL VALVE

ASSY, with Power Beyond, Incl 2 - 33, Start Serial: D7418

1шт.

2

87330318

HYD VALVE SECTION

ASSY, Auxiliary, Left, Serial Range: -C7414

1шт.

2

87330318R

REMAN-HYD VALVE

Auxiliary, Left

1шт.

2

87330318C

CORE-VALVE HYD

Return Number

1шт.

2

47434172

HYD VALVE SECTION

ASSY, Auxiliary, Left, Serial Range: D7414-C7417

1шт.

2

47434172R

REMAN-HYD VALVE

Auxiliary, Left

1шт.

2

47434172C

CORE-VALVE HYD

Return Number

1шт.

2

47592925

HYDRAULIC VALVE

ASSY, Auxiliary, Left, Serial Range: D7417-C7418

1шт.

2

47592925R

REMAN-HYD VALVE

Auxiliary, Left

1шт.

2

47592925C

CORE-VALVE HYD

Return Number

1шт.

2

47594400

HYDRAULIC VALVE

ASSY, Auxiliary, Left Low Leak, Start Serial: D7418

1шт.

3

87325955

HYD VALVE SECTION

ASSY, Auxiliary, Main, Serial Range: -C7414

3шт.

3

87325955R

REMAN-HYD VALVE

Auxiliary, Main

3шт.

3

87325955C

CORE-VALVE HYD

Return Number

3шт.

3

47434171

HYD VALVE SECTION

ASSY, Auxiliary, Main, Serial Range: D7414-C7417

3шт.

3

47434171R

REMAN-HYD VALVE

Auxiliary, Main

3шт.

3

47434171C

CORE-VALVE HYD

Return Number

3шт.

3

47592924

VALVE

ASSY, Auxiliary, Main, Serial Range: D7417-C7418

3шт.

3

47592924R

REMAN-HYD VALVE

Auxiliary, Main

3шт.

3

47592924C

CORE-VALVE HYD

Return Number

3шт.

3

47594399

HYDRAULIC VALVE

ASSY, Auxiliary, Main Low Leak, Start Serial: D7418

3шт.

4

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

8шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

8шт.

6

87382012

SEAL KIT

8шт.

7

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

16шт.

8

87381944

COUPLING, QUICK, FEM

ASSY, Incl 5, 6

4шт.

9

87596458

HYDRAULIC MANIFOLD

ASSY, Incl 8

1шт.

10

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, ASSY, Incl 8

1шт.

11

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

6шт.

12

87555868

MANIFOLD VALVE

ASSY, Inlet/Outlet

1шт.

13

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

12шт.

14

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

19шт.

15

87331245

VALVE SECTION

ASSY, Hitch Valve, Serial Range: -C7414

1шт.

15

87331245R

REMAN-HYD VALVE

Hitch Valve

1шт.

15

87331245C

CORE-VALVE HYD

Return Number

1шт.

15

47434177

HYD VALVE SECTION

ASSY, Hitch Valve, Start Serial: D7414

1шт.

15

47434177R

REMAN-HYD VALVE

Hitch Valve

1шт.

15

47434177C

CORE-VALVE HYD

Return Number

1шт.

16

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

1шт.

17

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

18

87381982

HYDRAULIC MANIFOLD

is faster 4bm11, ASSY, Incl 8

1шт.

19

87604619

THREADED TIE-ROD,M12 x 1.75 x 135mm L

M12 x 1.75 x 135mm

3шт.

20

87604617

STUD,M12 x 1.75 x 235mm L

M12 x 1.75 x 235mm

1шт.

21

87381981

HYDRAULIC MANIFOLD

is faster 4bm10, ASSY, Incl 8

1шт.

22

87607904

HYD VALVE SECTION

ASSY, Power Beyond Manifold, Incl 23 - 25, 27, 28, 30, 33

1шт.

23

87648607

PLUG,M12 x 1.5 ORB

1шт.

24

87648596

SPRING,3.81mm OD x 23.19mm L

1шт.

25

87648631

PIN,8mm OD x 19mm L

1шт.

26

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

27

87310811

PUSH-PULL COUPLING

ASSY, Incl 26

1шт.

28

87310813

PUSH-PULL COUPLING

ASSY, Incl 29

1шт.

29

14438185

O-RING,24mm ID x 3mm

1шт.

30

87310816

PUSH-PULL COUPLING

ASSY, Incl 31

1шт.

31

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

32

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

33

84174591

HYD CONNECTOR,Hex, M14 x 1.5

ASSY, Incl 32

1шт.

Выбрано товаров: 58
