(31.114.02) - POWER TAKE-OFF GUARD FLIP UP PERFORATED

Запчасти Case IH PUMA 200 (31.114.02) - POWER TAKE-OFF GUARD FLIP UP PERFORATED (31) - IMPLEMENT POWER TAKE OFF

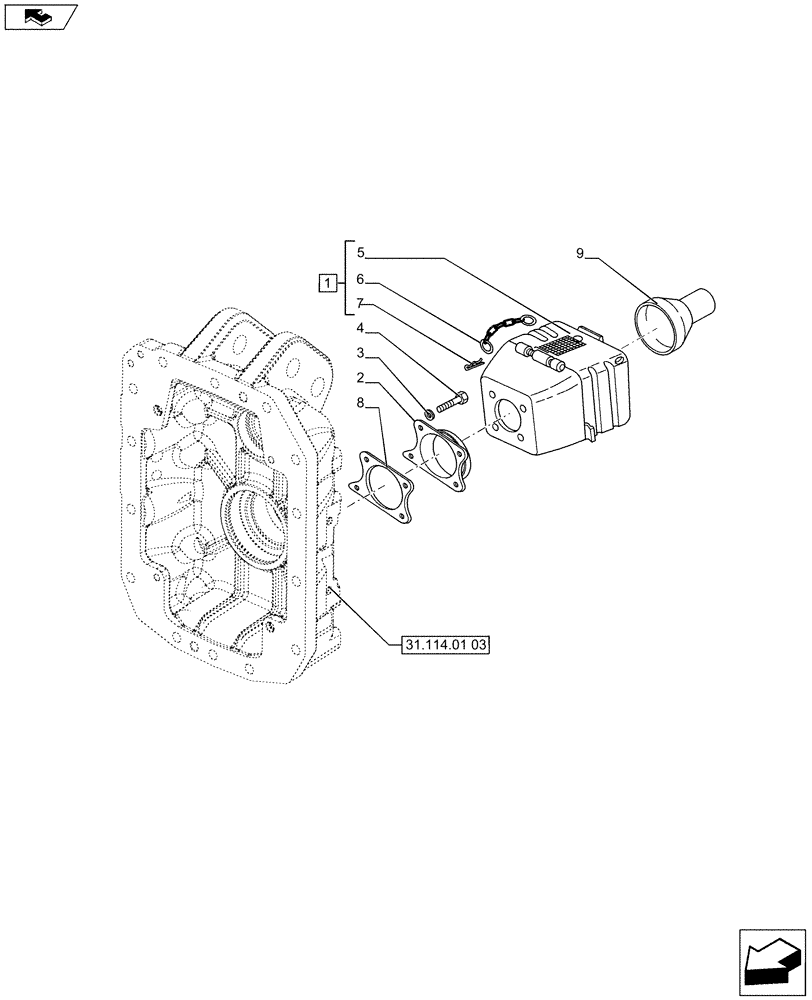

Схема запчастей Case IH PUMA 200 - (31.114.02) - POWER TAKE-OFF GUARD FLIP UP PERFORATED (31) - IMPLEMENT POWER TAKE OFF
9
1
6
4
5
3
8
7
home
31.114.01 03
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82024034

GUARD

Contains Ref. 5,6,7

1шт.

2

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

3

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

4

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

4шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

82024033

CHAIN

1шт.

7

82026318

COTTER PIN,1/8 x 2 5/16

1шт.

8

47131825

GUARD

1шт.

9

47125899

COVER,109mm L

1шт.
