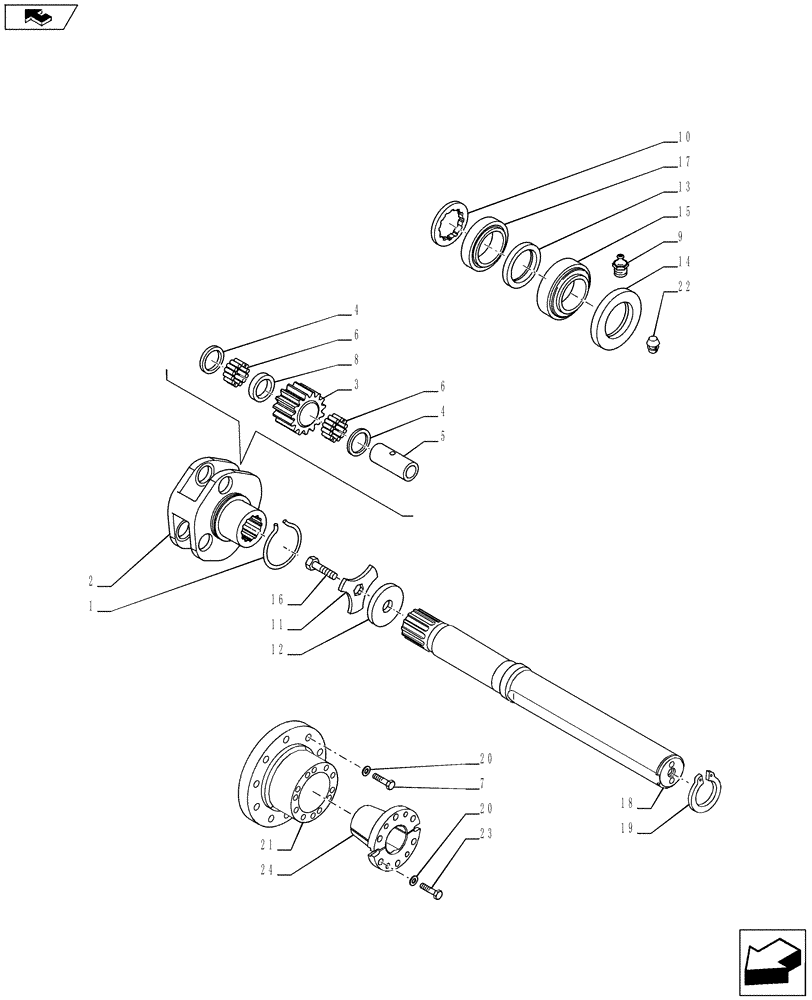

Запчасти Case IH PUMA 200 (27.120.0301) - BAR AXLE 119" - GEARS AND SHAFT (VAR.728181-729181 / 743605) (27) - REAR AXLE SYSTEM

1

5136132

CIRCLIP,4mm Thk

2шт.

2

87307356

PINION CARRIER

2шт.

3

87307351

IDLER PINION

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

87307359

PIN,62.4mm OD x 149.5mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

Contains Ref. 7

6шт.

7

15225924

BOLT,Hex, M22 x 2.5 x 60mm, Cl 8.8

20шт.

8

87307350

SPACER,64.5mm ID x 76.3mm OD x 19mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

87307355

THRUST WASHER,83mm ID x 117mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

84370195

WASHER,22.5mm ID x 100mm OD x 10mm Thk

2шт.

13

5154451

SEAL,95mm ID x 120mm OD x 12mm Thk

2шт.

14

87307349

SEAL,120mm ID x 152mm OD x 16mm Thk

2шт.

15

87307342

TAPERED BEARING,100mm ID x 150mm OD x 39mm W

2шт.

16

15992531

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

17

87307345

TAPERED BEARING,90mm ID x 140mm OD x 32mm W

2шт.

18

87309277

MAIN SHAFT

2шт.

19

11082174

CIRCLIP,105mm OD, DAC

D= 105

2шт.

20

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

1шт.

20

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

12шт.

VAR.729181 Bar Axle 119" for Cast Wheels

1шт.

21

47126431

HUB

2шт.

VAR.728181 Bar Axle 119" for Steel Wheels

1шт.

22

81865567

PLUG,M18.5 Hole

2шт.

23

87688508

BOLT,Hex, M22 x 2.5 x 90mm, Cl 8.8

12шт.

VAR.728181 Bar Axle 119" for Steel Wheels

1шт.

23

11125324

BOLT,Hex, M20 x 80, 8.8

, Serial Range: -C7400

12шт.

VAR.729181 Bar Axle 119" for Cast Wheels

1шт.

23

11125424

SCREW,Hex, M20 x 85mm, Cl 8.8

, Start Serial: D7400

12шт.

VAR.729181 Bar Axle 119" for Cast Wheels

1шт.

24

87645102

WEDGE,Lock, Silver

2шт.

VAR.728181 Bar Axle 119" for Steel Wheels

1шт.

24

5198567

WEDGE

2шт.

VAR.729181 Bar Axle 119" for Cast Wheels

1шт.
