(25.108.0301[02]) - 4WD FRONT AXLE WITH BRAKE - AXLE SHAFT ARTICULATED - BREAKDOWN (VAR.728195-728212)

Запчасти Case IH PUMA 200 (25.108.0301[02]) - 4WD FRONT AXLE WITH BRAKE - AXLE SHAFT ARTICULATED - BREAKDOWN (VAR.728195-728212) (25) - FRONT AXLE SYSTEM

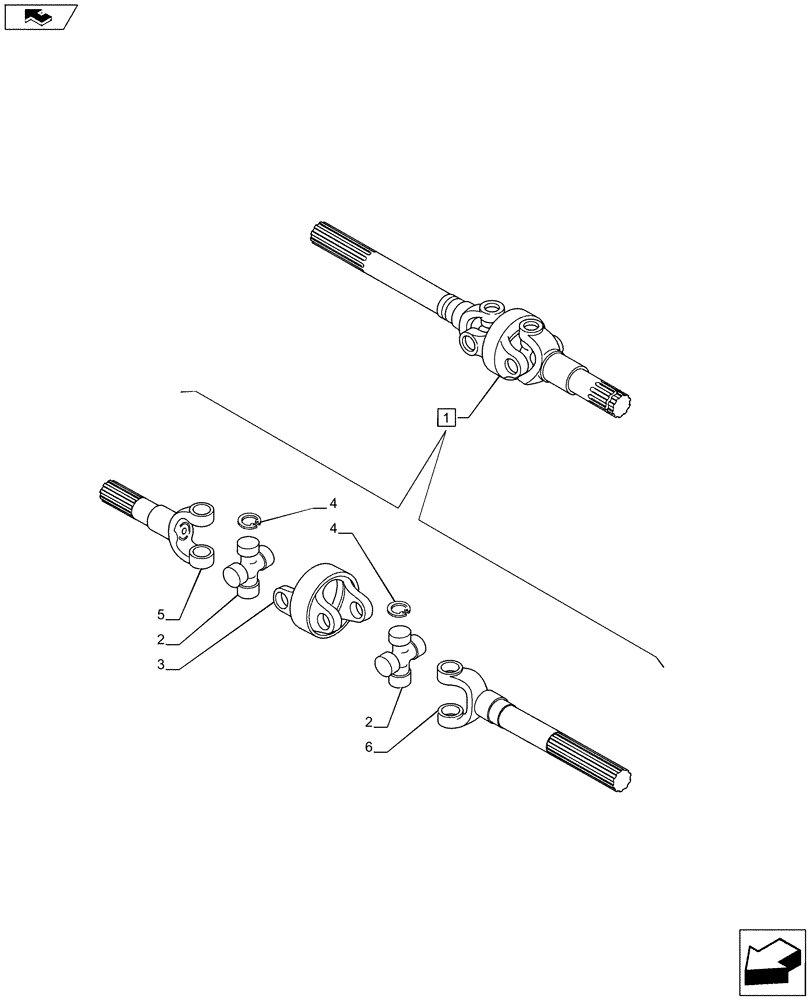

Схема запчастей Case IH PUMA 200 - (25.108.0301[02]) - 4WD FRONT AXLE WITH BRAKE - AXLE SHAFT ARTICULATED - BREAKDOWN (VAR.728195-728212) (25) - FRONT AXLE SYSTEM
2
3
4
2
home
6
4
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84184102

AXLE-SHAFT, ARTICULA

RH, ASSY, Contains Ref. 2-6

1шт.

1

84184113

AXLE-SHAFT, ARTICULA

LH, ASSY, Contains Ref. 2-6

1шт.

2

5191451

SPIDER

2шт.

3

87568624

U-JOINT SPIDER

1шт.

4

5191452

LOCKING RING

8шт.

5

84189184

SHAFT

2шт.

6

84189223

SHAFT

LH, 723MM

1шт.

6

84189264

SHAFT

RH, 668MM

1шт.

Выбрано товаров: 8
