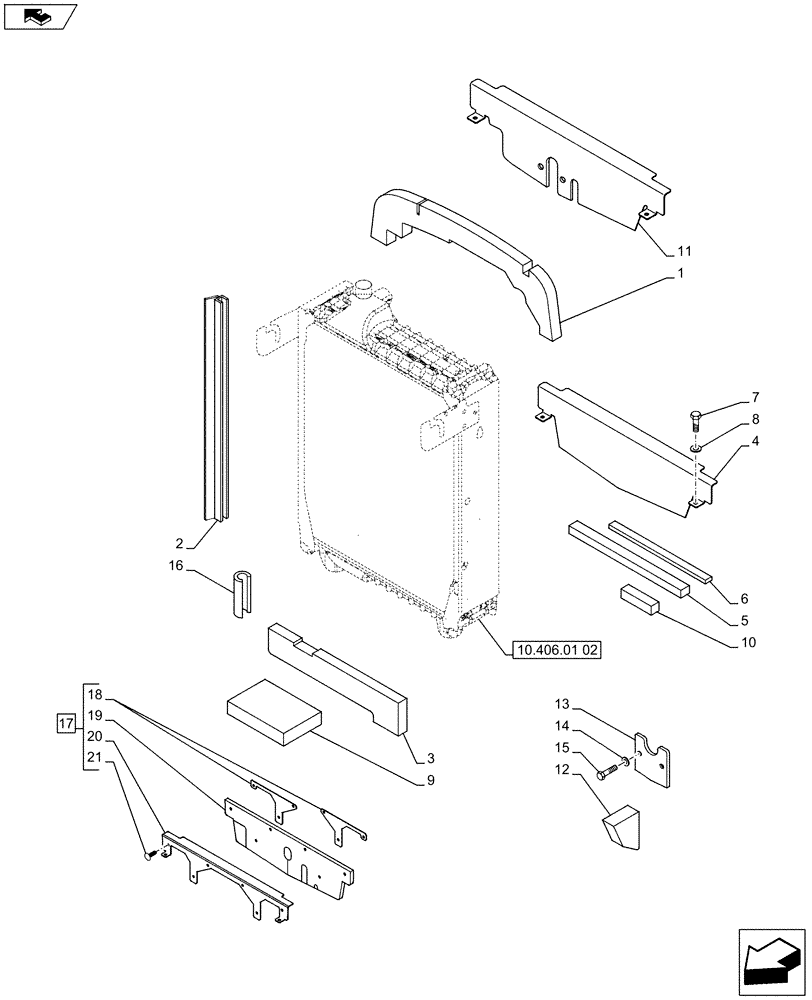

Запчасти Case IH PUMA 200 (10.406.02) - NEW FRONT LINKAGE FOR ELECTRONIC REMOTES - RADIATOR DUCT AND SEALS (VAR.743483-743484-743485-743486-743481-743482 / 743765) (10) - ENGINE

1

82038279

SEAL

1шт.

1

82038278

INSULATOR

1шт.

This Part is also Available in Dia Kit 710062064

1шт.

2

82039110

SEAL

2шт.

3

87380756

FOAM INSULATION

2шт.

4

82038426

DEFLECTOR

1шт.

4

87701774

DEFLECTOR

, Serial Range: -C7370

1шт.

VAR.743486 Front Linkage for Suspended and Standard Axles for Mid Mount Remotes - with PTO with Aux Coupler

1шт.

4

87701772

DEFLECTOR

, Serial Range: -C7370

1шт.

VAR.743484 Front Linkage for Suspended and Standard Axles for Elec. Remotes - with PTO less Aux Coupler; VAR.743082 Front Linkage for Suspended and Standard Axles for Mech. Remotes - with PTO less Aux Coupler

1шт.

5

82038425

SEALING STRIP,680mm x 25mm x 10mm

, Serial Range: -C7370

1шт.

5

87580269

SEAL

1шт.

VAR.743483 Front Linkage for Suspended and Standard Axles for Elec. Remotes - less PTO less Aux Coupler; VAR.729087 Front Linkage for Suspended and Standard Axles for Mech. Remotes - less PTO less Aux Coupler

1шт.

6

82038264

SEAL,510mm x 15mm x 5mm

510MM, Rad to Baffle Plate

1шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

8

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

9

82030145

FOAM INSULATION

Radiator Air Side

2шт.

10

84221833

GASKET

1шт.

11

87353442

DEFLECTOR

, Serial Range: -C7167

1шт.

VAR.743483 Front Linkage for Suspended and Standard Axles for Elec. Remotes - less PTO less Aux Coupler; VAR.729087 Front Linkage for Suspended and Standard Axles for Mech. Remotes - less PTO less Aux Coupler

1шт.

11

87353445

DEFLECTOR

, Serial Range: -C7167

1шт.

VAR.743485 Front Linkage for Suspended and Standard Axles for Mid Mount Remotes - less PTO with Aux Coupler

1шт.

11

84546781

BAFFLE

, Serial Range: D7167-C7370

1шт.

VAR.743485 Front Linkage for Suspended and Standard Axles for Mid Mount Remotes - less PTO with Aux Coupler

1шт.

11

84546779

BAFFLE

, Serial Range: D7167-C7370

1шт.

VAR.743483 Front Linkage for Suspended and Standard Axles for Elec. Remotes - less PTO less Aux Coupler; VAR.729087 Front Linkage for Suspended and Standard Axles for Mech. Remotes - less PTO less Aux Coupler

1шт.

VAR.743481 Front Linkage for Suspended and Standard Axles for Mid Mount Remotes - less PTO less Aux Coupler

1шт.

12

82039468

INSULATOR

1шт.

VAR.743486 Front Linkage for Suspended and Standard Axles for Mid Mount Remotes - with PTO with Aux Coupler

1шт.

VAR.743485 Front Linkage for Suspended and Standard Axles for Mid Mount Remotes - less PTO with Aux Coupler

1шт.

13

87390678

PLATE

, Serial Range: -C7370

1шт.

VAR.743486 Front Linkage for Suspended and Standard Axles for Mid Mount Remotes - with PTO with Aux Coupler

1шт.

VAR.743484 Front Linkage for Suspended and Standard Axles for Elec. Remotes - with PTO less Aux Coupler; VAR.743082 Front Linkage for Suspended and Standard Axles for Mech. Remotes - with PTO less Aux Coupler

1шт.

14

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

, Serial Range: -C7370

2шт.

VAR.743486 Front Linkage for Suspended and Standard Axles for Mid Mount Remotes - with PTO with Aux Coupler

1шт.

VAR.743484 Front Linkage for Suspended and Standard Axles for Elec. Remotes - with PTO less Aux Coupler; VAR.743082 Front Linkage for Suspended and Standard Axles for Mech. Remotes - with PTO less Aux Coupler

1шт.

15

10979421

SCREW,Hex, M6 x 10mm, Cl 8.8

, Serial Range: -C7370

2шт.

VAR.743486 Front Linkage for Suspended and Standard Axles for Mid Mount Remotes - with PTO with Aux Coupler

1шт.

VAR.743484 Front Linkage for Suspended and Standard Axles for Elec. Remotes - with PTO less Aux Coupler; VAR.743082 Front Linkage for Suspended and Standard Axles for Mech. Remotes - with PTO less Aux Coupler

1шт.

16

82015330

BUMPER

2шт.

VAR.743486 Front Linkage for Suspended and Standard Axles for Mid Mount Remotes - with PTO with Aux Coupler

1шт.

17

84543317

ASSY, Incl 18-21, Start Serial: D7370

1шт.

VAR.743484 Front Linkage for Suspended and Standard Axles for Elec. Remotes - with PTO less Aux Coupler; VAR.743082 Front Linkage for Suspended and Standard Axles for Mech. Remotes - with PTO less Aux Coupler

1шт.

VAR.743483 Front Linkage for Suspended and Standard Axles for Elec. Remotes - less PTO less Aux Coupler; VAR.729087 Front Linkage for Suspended and Standard Axles for Mech. Remotes - less PTO less Aux Coupler

1шт.

VAR.743485 Front Linkage for Suspended and Standard Axles for Mid Mount Remotes - less PTO with Aux Coupler

1шт.

VAR.743481 Front Linkage for Suspended and Standard Axles for Mid Mount Remotes - less PTO less Aux Coupler

1шт.

18

87649703

DEFLECTOR

2шт.

19

84543379

FOAM

1шт.

20

84543378

BAFFLE

1шт.

21

87635853

STUD,7.1mm D

6шт.
