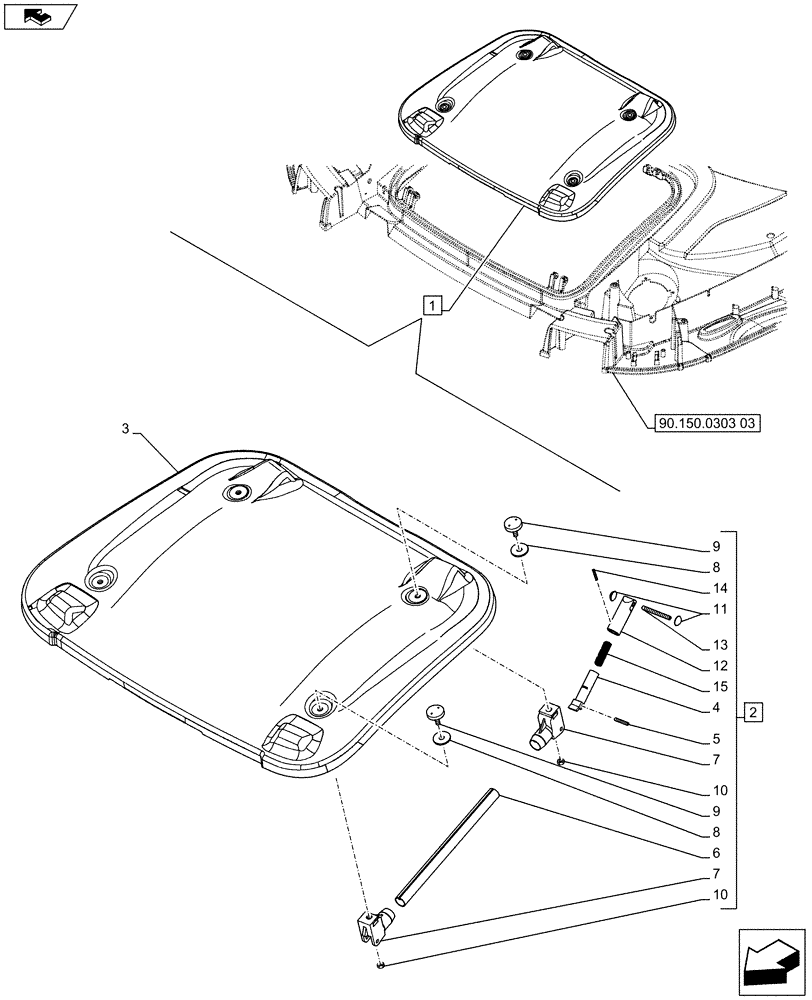

Запчасти Case IH PUMA 200 (90.150.0303[02]) - DELUXE CAB WITH HEATER AND AIR CONDITIONING WITH HIGH VISIBILITY PANEL - GLASS AND RELEVANT PARTS - NA (VAR.729097-743229-743628) (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case IH PUMA 200 - (90.150.0303[02]) - DELUXE CAB WITH HEATER AND AIR CONDITIONING WITH HIGH VISIBILITY PANEL - GLASS AND RELEVANT PARTS - NA (VAR.729097-743229-743628) (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/caseih/5403418.png)
90.150.0303 03
8
13
11
3
2
7
8
14
1
4
7
12
9
home
15
9
5
10
6
10
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
84290181
HATCH
ASSY, Contains Ref. 2, 3
1шт.
2
82035473
HANDLE
ASSY, Contains Ref. 4 - 15
2шт.
3
84290185
HATCH
1шт.
4
87515655
PIN
4шт.
5
87515666
HOLDER
4шт.
6
87515660
HANDLE
2шт.
7
87515664
HINGE
4шт.
8
87515661
GASKET
4шт.
9
87515662
RIVET
4шт.
10
87515658
NUT
4шт.
11
87515656
CAP WASHER
8шт.
12
87515665
HOLDER
4шт.
13
87515657
PIN
4шт.
14
87515659
PIN
4шт.
15
87515663
SPRING
4шт.
Выбрано товаров: 15
