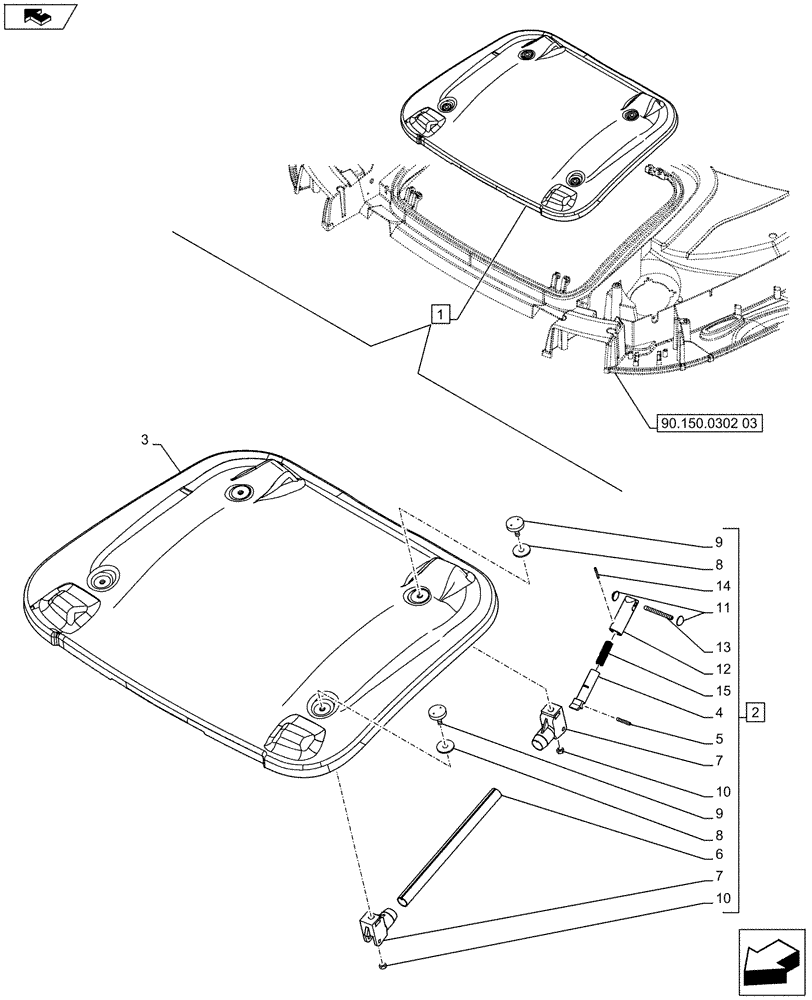

Запчасти Case IH PUMA 200 (90.150.0302[02]) - DELUXE CAB WITH HEATER AND AIR CONDITIONING WITH HIGH VISIBILITY PANEL - GLASS AND RELEVANT PARTS - ISO (VAR.728070-729096-743628) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84290181

HATCH

ASSY, Contains Ref. 2, 3

1шт.

2

82035473

HANDLE

ASSY, Contains Ref. 4 - 15

2шт.

3

84290185

HATCH

1шт.

4

87515655

PIN

4шт.

5

87515666

HOLDER

4шт.

6

87515660

HANDLE

2шт.

7

87515664

HINGE

4шт.

8

87515661

GASKET

4шт.

9

87515662

RIVET

4шт.

10

87515658

NUT

4шт.

11

87515656

CAP WASHER

8шт.

12

87515665

HOLDER

4шт.

13

87515657

PIN

4шт.

14

87515659

PIN

4шт.

15

87515663

SPRING

4шт.
