(10.406.01[01B]) - INTERCOOLER, TRANSM. OIL COOLER AND AIR CONDITIONING CONDENSER - BREAKDOWN - D7381

Запчасти Case IH PUMA 200 (10.406.01[01B]) - INTERCOOLER, TRANSM. OIL COOLER AND AIR CONDITIONING CONDENSER - BREAKDOWN - D7381 (10) - ENGINE

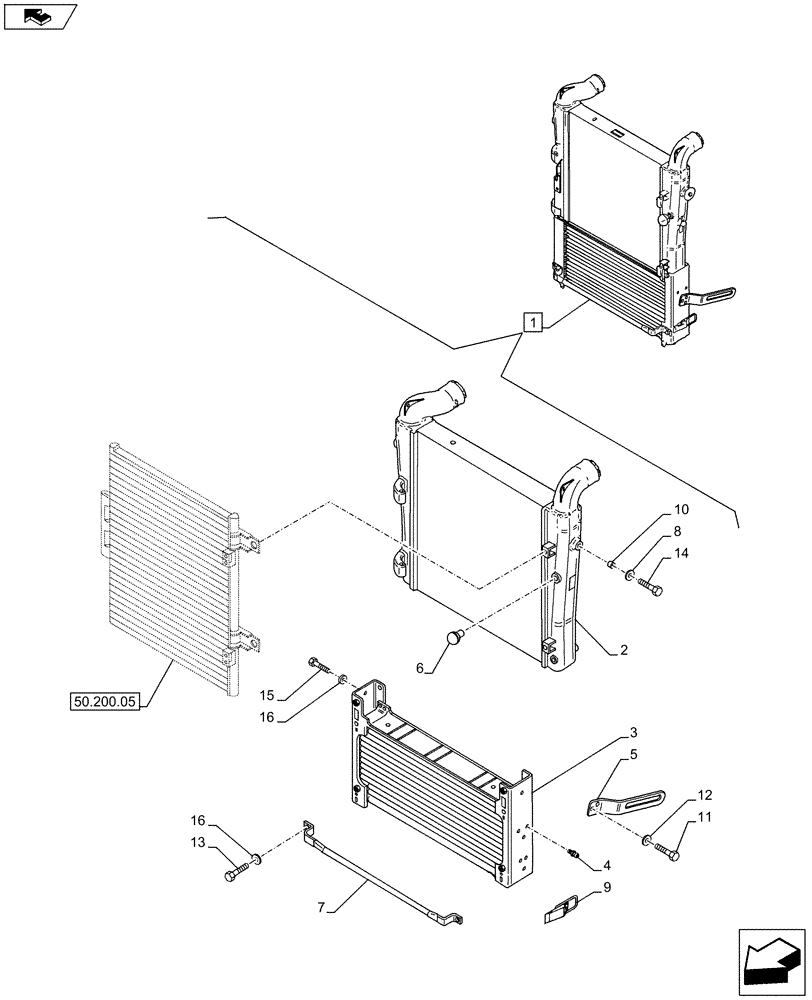

Схема запчастей Case IH PUMA 200 - (10.406.01[01B]) - INTERCOOLER, TRANSM. OIL COOLER AND AIR CONDITIONING CONDENSER - BREAKDOWN - D7381 (10) - ENGINE
50.200.05
14
16
15
1
12
3
home
4
13
10
9
11
16
2
8
7
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47568315

INTERCOOLER

ASSY, Contains Ref. 2 - 16

1шт.

2

87739452

COOLER

Intercooler

1шт.

3

84523127

OIL COOLER

Transmission Oil Cooler

1шт.

4

84193371

STUD,M5

4шт.

5

87619636

BRACKET

2шт.

6

87620057

KNOB

1шт.

7

84137570

HANDLE

1шт.

8

84137491

WASHER,50.8mm ID

2шт.

9

87390316

LATCH

1шт.

10

87385194

ROLLER BEARING,8mm ID x 16mm OD x 5mm W

2шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

12

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

13

9706690

NUT,M8 x 1.25, Cl 8

2шт.

14

73170208

HEX SOC SCREW,Flat Hd, M8 x 25mm, Cl 8.8

2шт.

15

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

16

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.
