(90.120.0202[04]) - DELUXE HEATED SEAT WITH LOW FREQUENCY SUSPENSION - BREAKDOWN (VAR.743154)

Запчасти Case IH PUMA 200 (90.120.0202[04]) - DELUXE HEATED SEAT WITH LOW FREQUENCY SUSPENSION - BREAKDOWN (VAR.743154) (90) - PLATFORM, CAB, BODYWORK AND DECALS

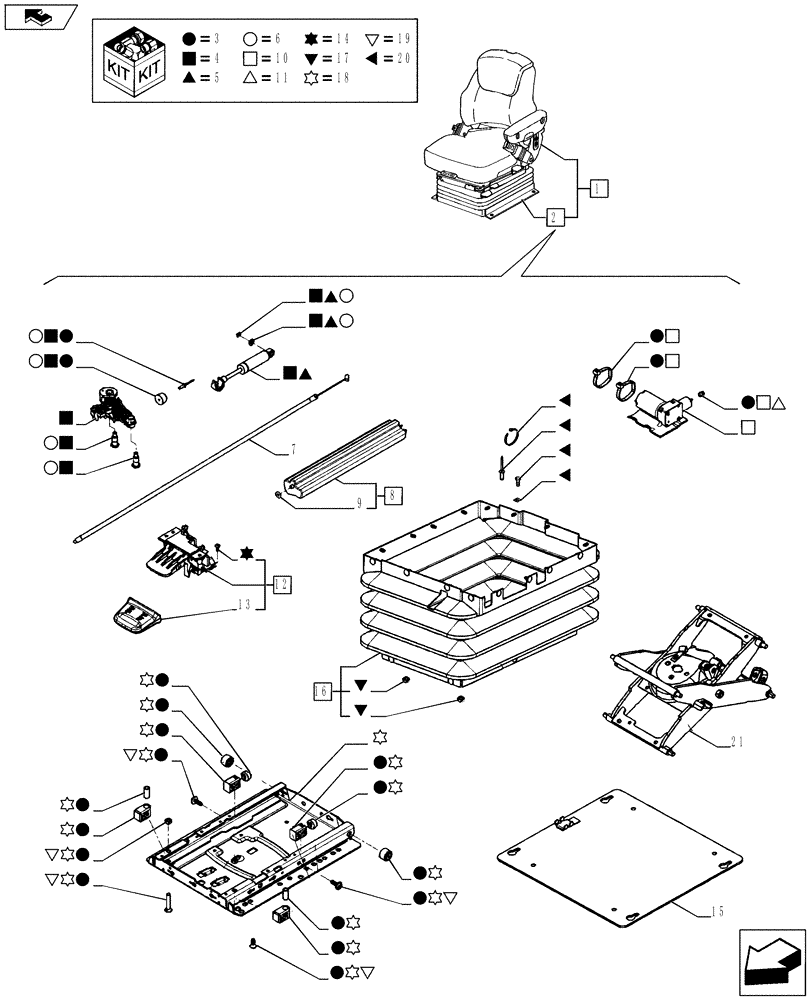

Схема запчастей Case IH PUMA 200 - (90.120.0202[04]) - DELUXE HEATED SEAT WITH LOW FREQUENCY SUSPENSION - BREAKDOWN (VAR.743154) (90) - PLATFORM, CAB, BODYWORK AND DECALS
19
18
18
18
14
13
4
10
17
18
5
home
4
3
6
4
5
3
20
9
3
19
4
3
3
7
10
18
18
2
18
3
3
1
19
3
21
10
3
3
4
6
4
18
18
19
3
18
17
3
18
6
19
4
4
6
5
18
3
6
3
3
19
18
10
10
20
4
3
14
17
12
11
18
20
20
18
3
5
18
15
8
3
3
3
5
19
6
14
20
6
6
20
10
4
11
3
18
18
11
3
17
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87486990

SEAT

ASSY, See Also Page 01,02,03

1шт.

Electrohydraulic Remote Models Only

1шт.

1

84171102

SEAT

ASSY, See Also Page 01,02,03

1шт.

Mechanical Remote Models Only

1шт.

2

84191066

SUSPENSION

ASSY, See Also Page 03

1шт.

3

84190975

REPAIR KIT

1шт.

4

84190983

SHOCK ABSORBER

Contains Ref. 5,6

1шт.

5

84190985

SHOCK ABSORBER

1шт.

6

84191002

REPAIR KIT

1шт.

7

84190997

BOWDEN CONTROL

1шт.

8

84191082

SERVICE KIT

Contains Ref. 9

1шт.

9

84191086

REPAIR KIT

1шт.

10

84190980

AIR COMPRESSOR

Contains Ref. 11

1шт.

11

84191008

REPAIR KIT

1шт.

12

345107A1

LEVER

Contains Ref. 13,14

1шт.

13

84191000

HANDLE

1шт.

14

84191017

REPAIR KIT

1шт.

15

84191021

PLATE

1шт.

16

84190978

BELLOWS

Contains Ref. 17

1шт.

17

84191003

REPAIR KIT

1шт.

18

84190976

PLATE

Contains Ref. 19

1шт.

19

84191014

REPAIR KIT

1шт.

20

84191020

REPAIR KIT

1шт.

21

NSS

NOT SOLD SEPARAT

1шт.
