Запчасти Case IH PUMA 200 (88.090.04) - DIA KIT - REAR FENDER EXTENSIONS (88) - ACCESSORIES

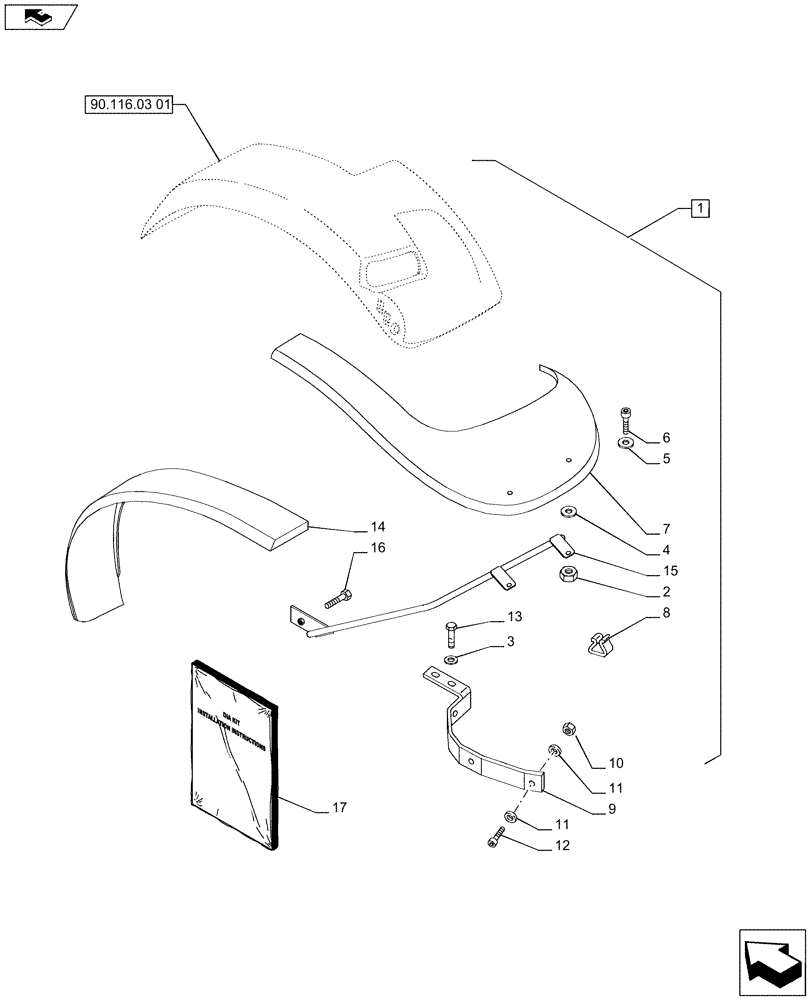

Схема запчастей Case IH PUMA 200 - (88.090.04) - DIA KIT - REAR FENDER EXTENSIONS (88) - ACCESSORIES
3
13
14
10
17
9
90.116.03 01
home
5
12
4
15
16
2
7
1
6
11
11
8

Артикул

Название

Примечание

Количество

1

710869104

DIA KIT, TRACTOR

Rear Fender Extensions, Contains Ref. 2-16 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

16104511

NUT,M8 x 1.25, Cl 8.8

4шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

4

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

5

84145763

WASHER,14mm ID x 41.3mm OD x 2.64mm Thk

7/16"

4шт.

6

83990985

BOLT,M8 x 1.25 x 25mm

M8x25

4шт.

7

87327426

FENDER EXTENSION

RH, REAR

1шт.

7

87327425

FENDER EXTENSION

LH, REAR

1шт.

8

82010838

SPRING CLIP,0.5mm Thk

28шт.

9

82037055

SUPPORT

RH

1шт.

9

82037057

SUPPORT

LH

1шт.

10

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

8шт.

11

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

16шт.

12

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

8шт.

13

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

14

82036146

FENDER EXTENSION

RH, SIDE

1шт.

14

82036148

FENDER EXTENSION

LH, SIDE

1шт.

15

82035422

SUPPORT

RH

1шт.

15

82035424

SUPPORT

LH

1шт.

16

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

17

84142711

INSTRUCTION

1шт.

Выбрано товаров: 22
