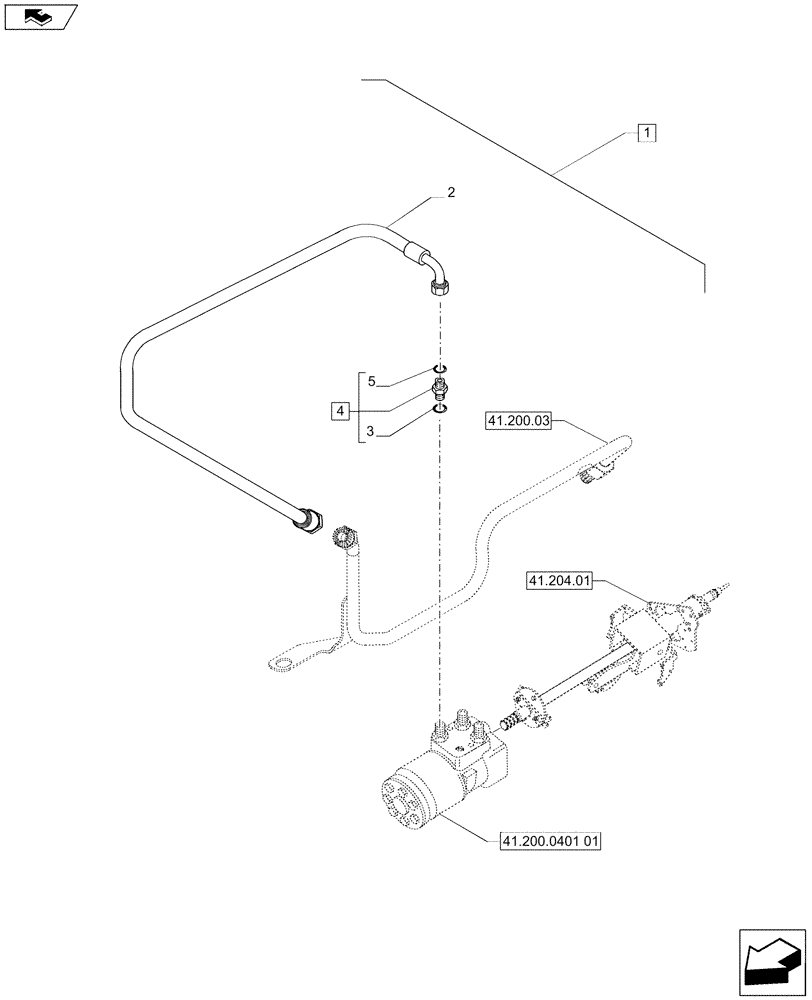

Запчасти Case IH PUMA 200 (88.055.26[06]) - DIA KIT - AUTO GUIDANCE SYSTEM READY - PIPES (88) - ACCESSORIES

1

710070164

Autoguidance, Contains Ref. 2-5

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87367548

HOSE ASSY.,540.00mm

, Serial Range: -C7217

1шт.

2

84402486

HOSE,12.7mm ID x 540mm L, SAE 100R16

, Start Serial: D7217

1шт.

3

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

1шт.

5

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.
