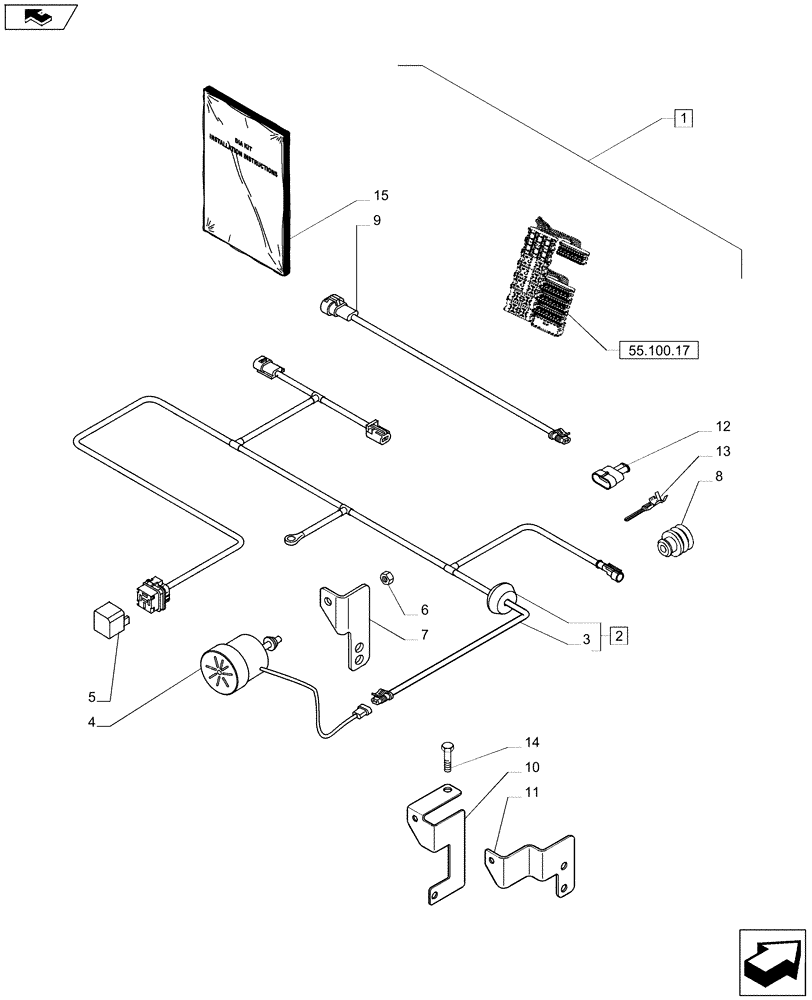

Запчасти Case IH PUMA 200 (88.055.24) - DIA KIT - REVERSE ALARM (88) - ACCESSORIES

1

718106044

DIA KIT, TRACTOR

Reverse Alarm, Contains Ref. 2-14

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87681343

WIRE HARNESS

Reverse Alarm

1шт.

3

82016008

GROMMET,45.47mm OD x 32mm ID x 19.05mm Thk

1шт.

4

87615634

REVERSE ALARM

1шт.

5

82013124

RELAY,12V, 30A

1шт.

6

15896211

NUT,M6, Cl 8

1шт.

7

87615630

BRACKET

T7000/PUMA

1шт.

8

82012084

SEAL,1.4mm ID

2шт.

9

87474194

WIRE HARNESS

CVT Reverse Alarm

1шт.

10

87599838

BRACKET

T6000/Maxxum/Profi Range

1шт.

Except with Range Command & Power Command Transmission

1шт.

11

84176788

BRACKET

T6000 Elite/Maxxum Multicontroller/Pro Range

1шт.

With Range Command & Power Command Transmission

1шт.

12

87687244

ELEC CONNECTOR

1шт.

13

87702670

TERMINAL

2шт.

14

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

15

84138419

INSTRUCTION

1шт.
