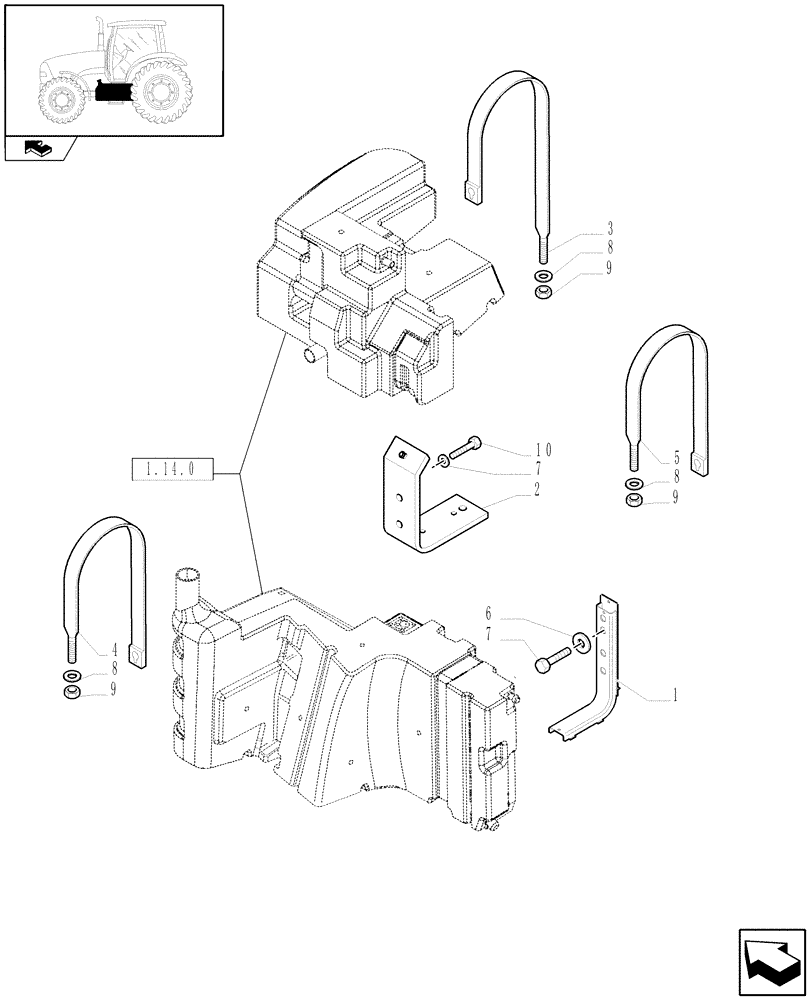

Запчасти Case IH PUMA 195 (1.14.7[01]) - MAIN FUEL TANK SUPPORT - C6687 (02) - ENGINE EQUIPMENT

1

87519071

HOLDER

1шт.

2

87519056

HOLDER

1шт.

3

87327086

SECURING STRAP

1шт.

4

87574100

SECURING STRAP

1шт.

5

87495535

SECURING STRAP

L=897

1шт.

6

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

7

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

8

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

9

11701711

NUT,Hex, M10, Cl 8, ZND

6шт.

10

11112821

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.
