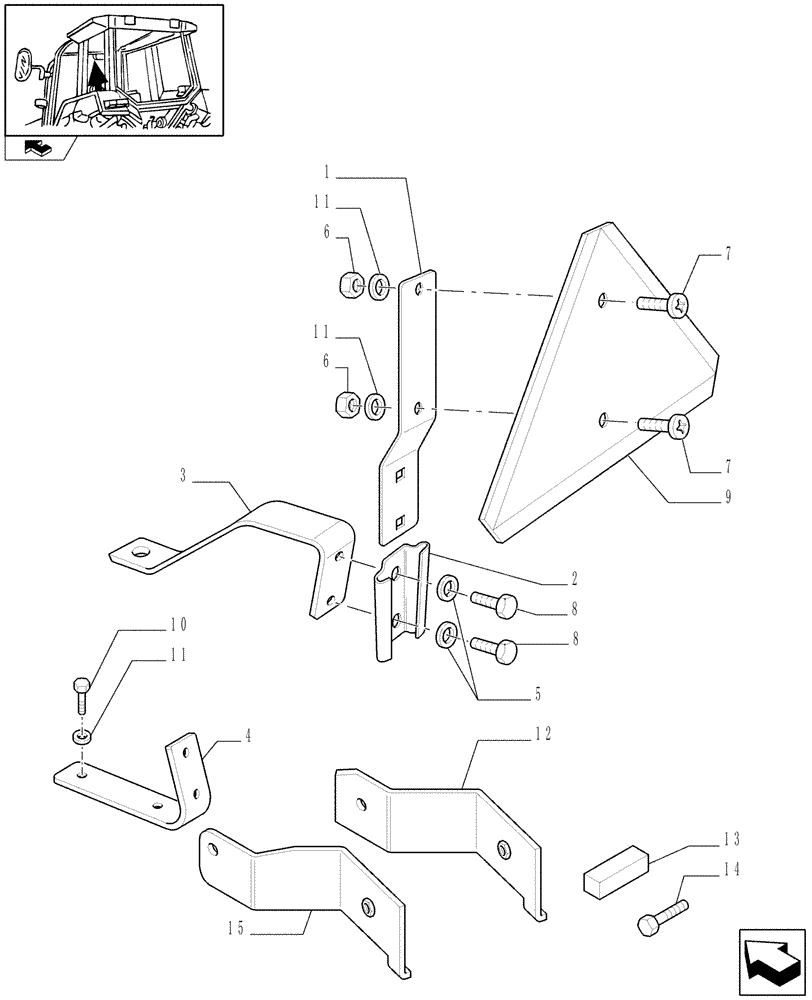

Запчасти Case IH PUMA 195 (1.99.3) - (VAR.146/1-759) SLOW MOVING VEHICLE SIGN (10) - OPERATORS PLATFORM/CAB

1

81864740

BRACKET

1шт.

With SMV Emblem, VAR.759

1шт.

2

5148517

SUPPORT

1шт.

3

84190968

BRACKET

ASSY, Mounting

1шт.

With SMV Emblem, VAR.759

1шт.

4

87556761

BRACKET

ASSY, Storage

1шт.

With SMV Emblem for Pneumatic Brakes, VAR.146/1

1шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

6

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

With SMV Emblem, VAR.759

1шт.

7

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

With SMV Emblem, VAR.759

1шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

9

82034583

WARNING TRIANGLE

1шт.

With SMV Emblem, VAR.759

1шт.

10

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

With SMV Emblem for Pneumatic Brakes, VAR.146/1

1шт.

11

14496404

WASHER,M6 x 12 x 2 Thk

4шт.

12

84273264

BRACKET

, Serial Range: -C7019

1шт.

With SMV Emblem, VAR.759

1шт.

13

87636521

SEAL

2шт.

With SMV Emblem, VAR.759

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

With SMV Emblem for Pneumatic Brakes, VAR.146/1

1шт.

With SMV Emblem, VAR.759

1шт.

14

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

With SMV Emblem, VAR.759

1шт.

15

84388390

BRACKET

, Start Serial: D7019

1шт.

With SMV Emblem for Pneumatic Brakes, VAR.146/1

1шт.

With SMV Emblem, VAR.759

1шт.
