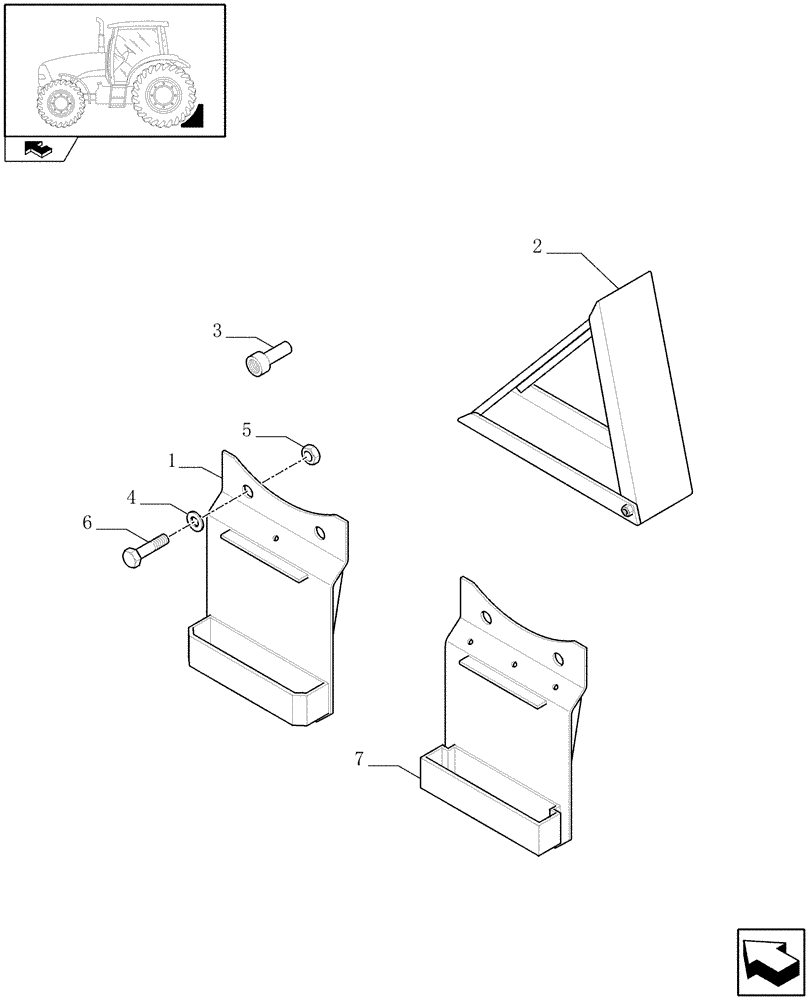

Запчасти Case IH PUMA 195 (1.99.1) - (VAR.863) CHOCK (10) - OPERATORS PLATFORM/CAB

1

87642859

SUPPORT

ASSY, LH, Serial Range: -C6675

1шт.

1

87642857

SUPPORT

ASSY, RH, Serial Range: -C6675

1шт.

2

81869660

WHEEL CHOCK

, Serial Range: -C7123

2шт.

2

84367151

WHEEL CHOCK

, Start Serial: D7123

1шт.

3

81869659

THREADED INSERT

4шт.

4

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

5

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

6

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

7

84145906

SUPPORT

ASSY, LH, Serial Range: D6675-C7080

1шт.

7

84358782

LH, Start Serial: D7080

1шт.

7

84145894

SUPPORT

ASSY, RH, Serial Range: D6675-C7080

1шт.

7

84358783

RH, Start Serial: D7080

1шт.
