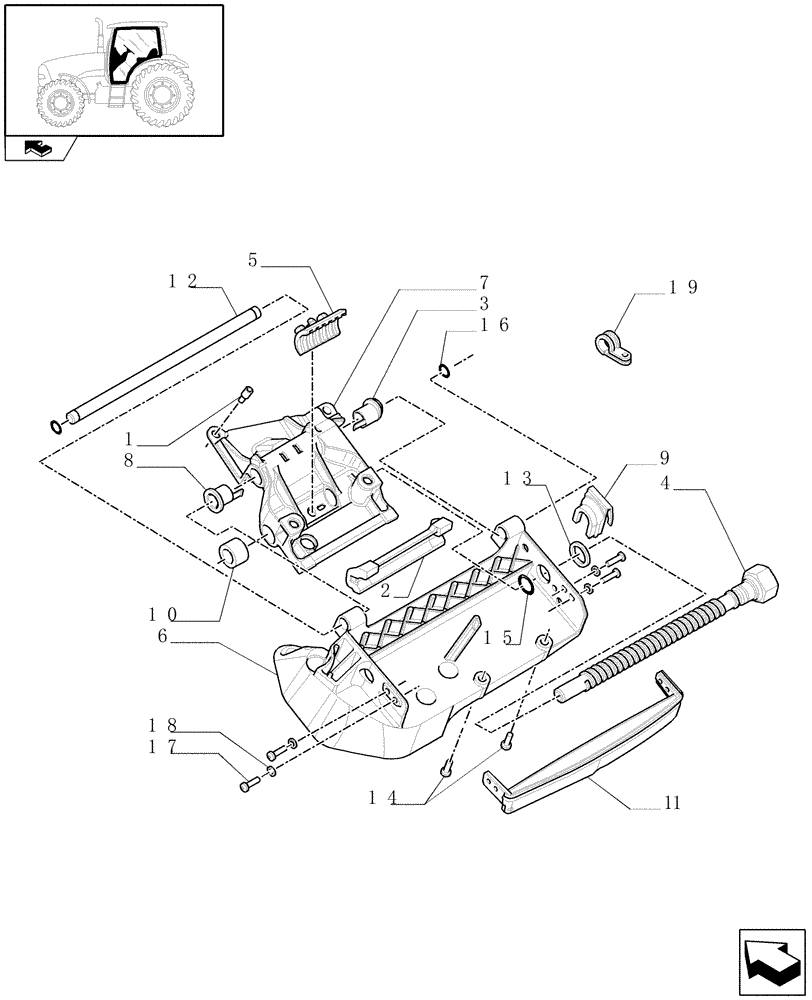

Запчасти Case IH PUMA 195 (1.97.0/01[03]) - ARMREST CONTROL UNIT - SLIDE MECHANISM (10) - OPERATORS PLATFORM/CAB

1

15624411

RIVET,Flat, M6 OD x 16mm L

4шт.

2

84236392

SLIDE GUIDE

1шт.

3

84236636

BUSHING

1шт.

4

84163864

ADJUSTMENT SCREW,309 mm L

1шт.

5

84136646

PIN

1шт.

6

84146844

SLIDE

1шт.

7

84146845

SLIDE

1шт.

8

84236763

BUSHING

1шт.

9

84236775

SPACER

1шт.

10

84206874

SPACER,18.2mm ID x 30mm OD x 19.5mm L

1шт.

11

84236407

SUPPORT

1шт.

12

84146847

SHAFT,14mm OD x 280mm L

1шт.

13

84146848

FRICTION WASHER,24.4mm ID x 32mm OD x 1.7mm Thk

1шт.

14

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

15

370001

SNAP RING,M22, External

1шт.

16

11066271

RING,Ext, 14mm Dia

2шт.

17

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

6шт.

18

10519407

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

6шт.

19

84232921

CABLE CLIP,25mm ID

1шт.
