Запчасти Case IH PUMA 195 (1.97.0/01[02]) - ARMREST CONTROL UNIT - COVERS AND CONTROLS (10) - OPERATORS PLATFORM/CAB

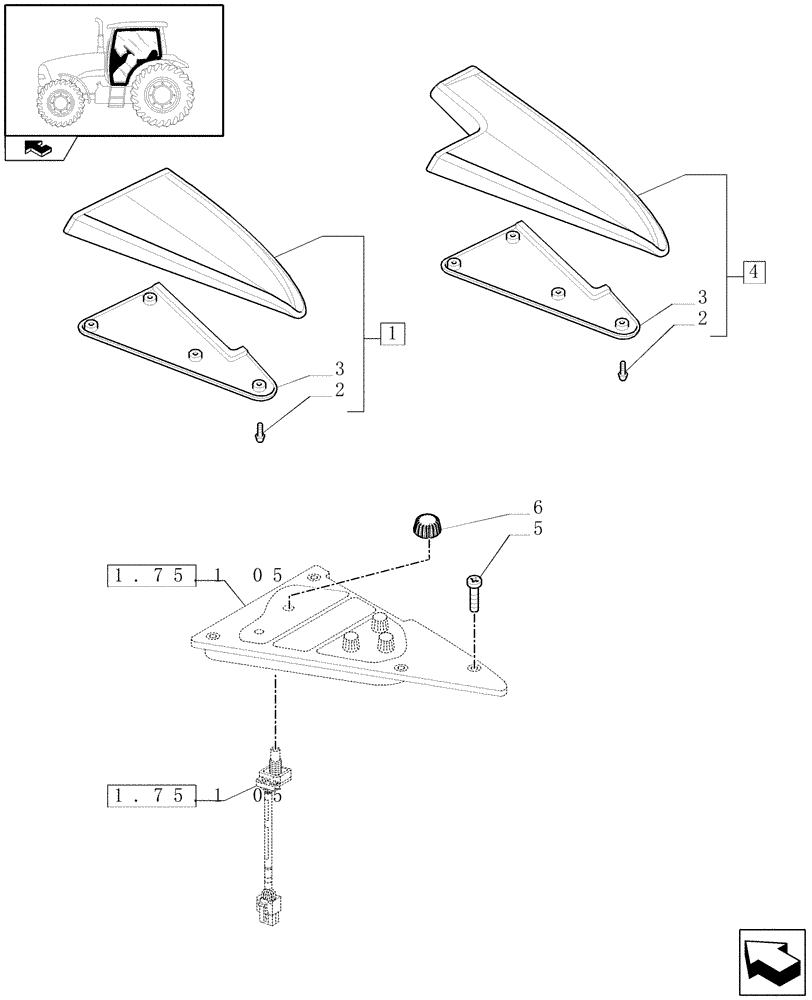

Схема запчастей Case IH PUMA 195 - (1.97.0/01[02]) - ARMREST CONTROL UNIT - COVERS AND CONTROLS (10) - OPERATORS PLATFORM/CAB
2
1.75.1 05
1.75.1 05
4
5
6
home
3
1
2
3

Артикул

Название

Примечание

Количество

1

87485752

CUSHION

1шт.

St. Valentin Production Models only

1шт.

2

13272017

SCREW,Pozidriv Pan Hd, M4 x 12mm

4шт.

3

87486097

PANEL

1шт.

4

87495096

CUSHION

1шт.

Basildon Production Models only

1шт.

5

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4.8 x 16

4шт.

6

87454709

KNOB

1шт.

Выбрано товаров: 8
