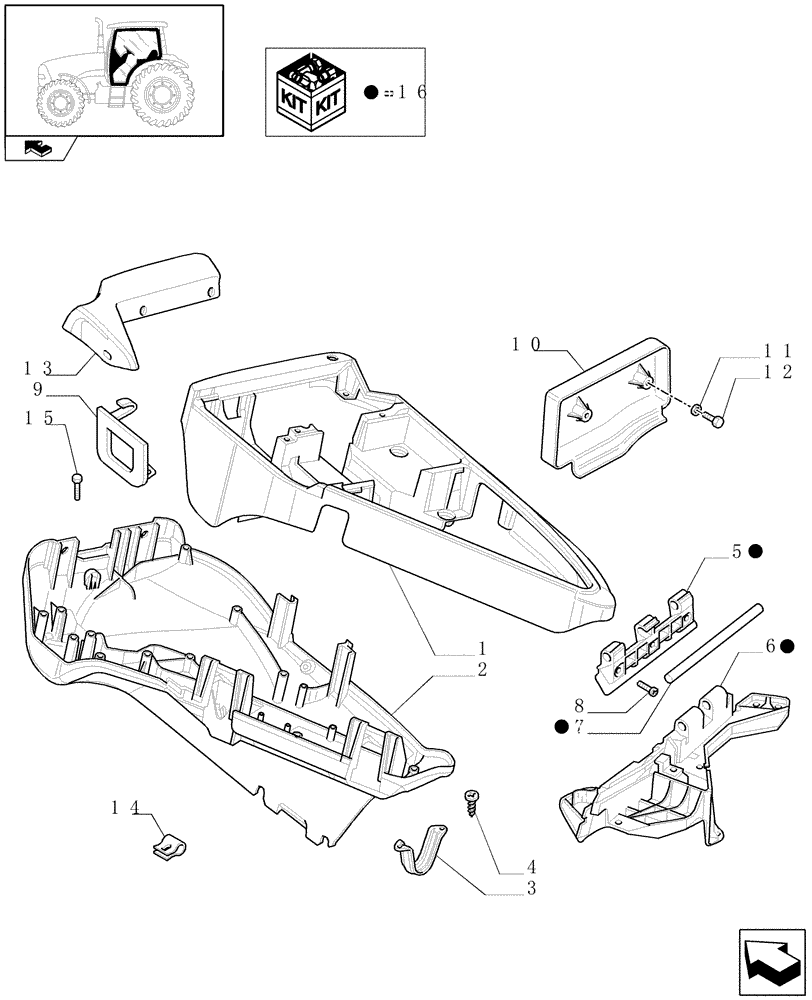

Запчасти Case IH PUMA 195 (1.97.0/01[01]) - ARMREST CONTROL UNIT - COVERS (10) - OPERATORS PLATFORM/CAB

1

84150708

SHELL

1шт.

2

87485760

HALF-SHELL

1шт.

3

87579853

RETAINER,14.9mm W x 56.7mm L

1шт.

4

13272617

SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 5.8

2шт.

5

87487262

HINGE

1шт.

6

84153062

HINGE

1шт.

7

84147684

PIN,10mm OD x 144mm L

1шт.

8

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

3шт.

9

84150714

BEZEL

SHELL

1шт.

10

87493860

PANEL

1шт.

Less SWCD

1шт.

11

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

2шт.

12

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

Aut. 8 x 19

4шт.

13

87485756

HOLDER

1шт.

14

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

NUT

13шт.

15

82016959

SCREW,M3.5 x 12mm

1шт.

16

84204558

HINGE

1шт.
