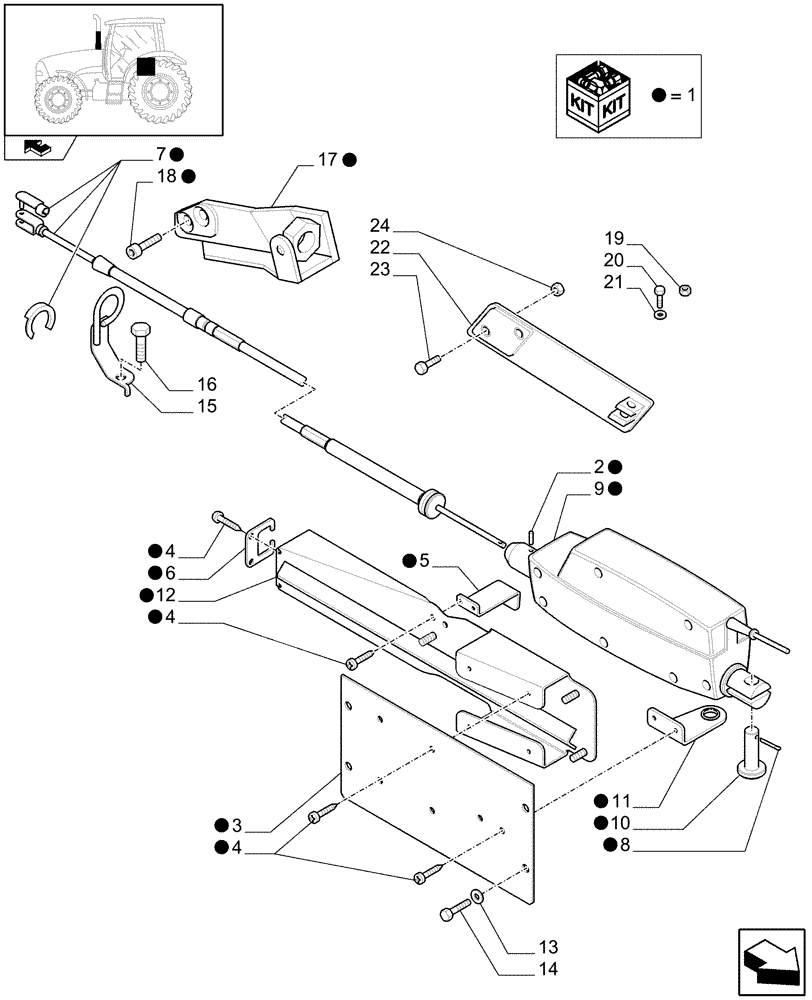

Запчасти Case IH PUMA 195 (1.96.3/02) - (VAR.349-374) 4 SPEED SHIFTABLE PTO ELECTRIC CONTROL - D6479 (10) - OPERATORS PLATFORM/CAB

1

84196122

ACTUATOR

ASSY

1шт.

2

14161971

ROLL PIN

3 x 20

1шт.

3

84203681

COVER

1шт.

4

15688004

SCREW,Pan Hd, M8 x 13

10шт.

5

84135358

CLAMP BRACKET

1шт.

6

84135360

HOLDER

1шт.

7

84266580

BOWDEN CONTROL,1008mm L

1шт.

8

10734301

COTTER PIN,M2 x 18

1шт.

9

84135359

ACTUATOR

1шт.

10

84135363

PIN

1шт.

11

84135356

ANCHOR

1шт.

12

84135361

FRAME

1шт.

13

10519407

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

14

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

15

84208245

SUPPORT

1шт.

16

15971521

SCREW,Hex, M10 x 1.25 x 85mm, Cl 8.8

1шт.

17

84256150

BRACKET

1шт.

18

14442721

SCREW,Hex Soc Flat Hd, M10 x 30, 8.8

2шт.

19

18711611

NUT,M10 x 1.25

1шт.

4 Speed PTO not Compatible with 19 Speed Transmission, VAR.349

1шт.

20

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

4 Speed PTO not Compatible with 19 Speed Transmission, VAR.349

1шт.

21

11193870

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

4 Speed PTO not Compatible with 19 Speed Transmission, VAR.349

1шт.

22

84193787

HOLDER

1шт.

4 Speed PTO not Compatible with 19 Speed Transmission, VAR.349

1шт.

23

14442721

SCREW,Hex Soc Flat Hd, M10 x 30, 8.8

2шт.

4 Speed PTO not Compatible with 19 Speed Transmission, VAR.349

1шт.

24

12164721

NUT,M10 x 1.25, Cl 10

2шт.

4 Speed PTO not Compatible with 19 Speed Transmission, VAR.349

1шт.
