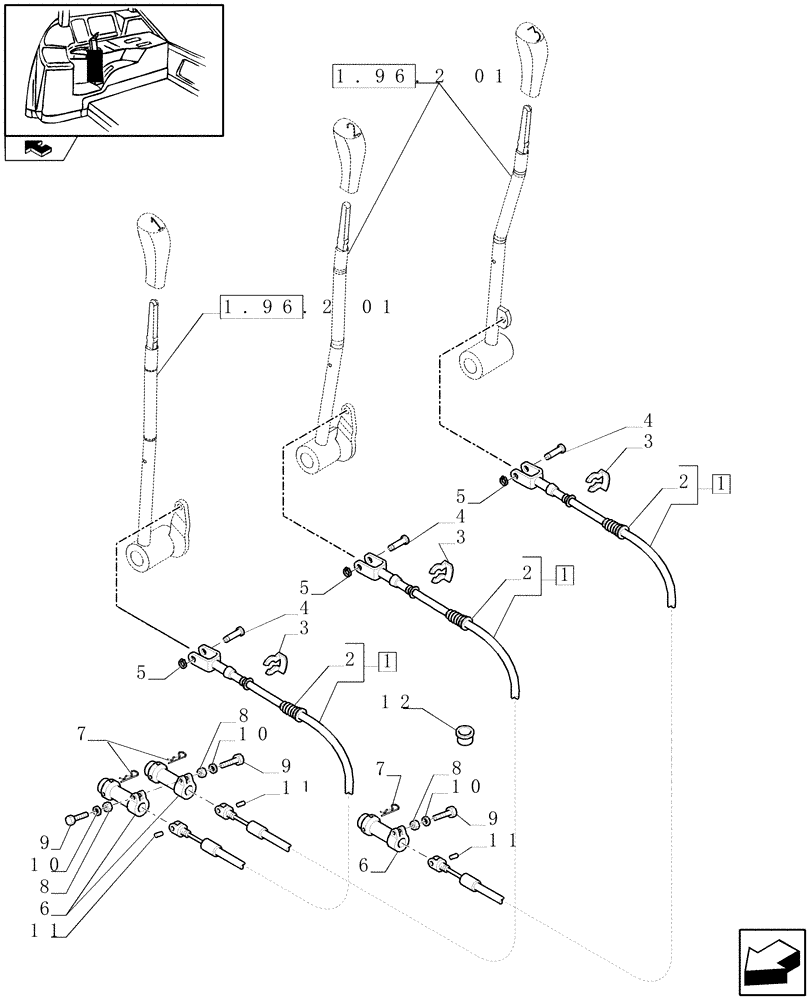

Запчасти Case IH PUMA 195 (1.96.2[02]) - CONTROL VALVE CONTROL (10) - OPERATORS PLATFORM/CAB

1

87308462

BOWDEN CONTROL

, Serial Range: -C6422

3шт.

1

84218763

BOWDEN CONTROL

, Start Serial: D6422

3шт.

2

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

3шт.

3

82007837

LOCKING RING

3шт.

4

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

3шт.

5

11087776

CIRCLIP,Ext., M6, BLO

3шт.

6

87356033

COUPLING,25mm ID x 35mm OD x 97mm L

3шт.

7

82026318

COTTER PIN,1/8 x 2 5/16

6шт.

8

15896224

NUT,Hex, M6

3шт.

9

10903034

SCREW

3шт.

10

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

3шт.

11

82001332

PIN,6.35mm OD x 16mm L

3шт.

12

81862738

PLUG,M38 x 28 x 5mm

28MM

4шт.
