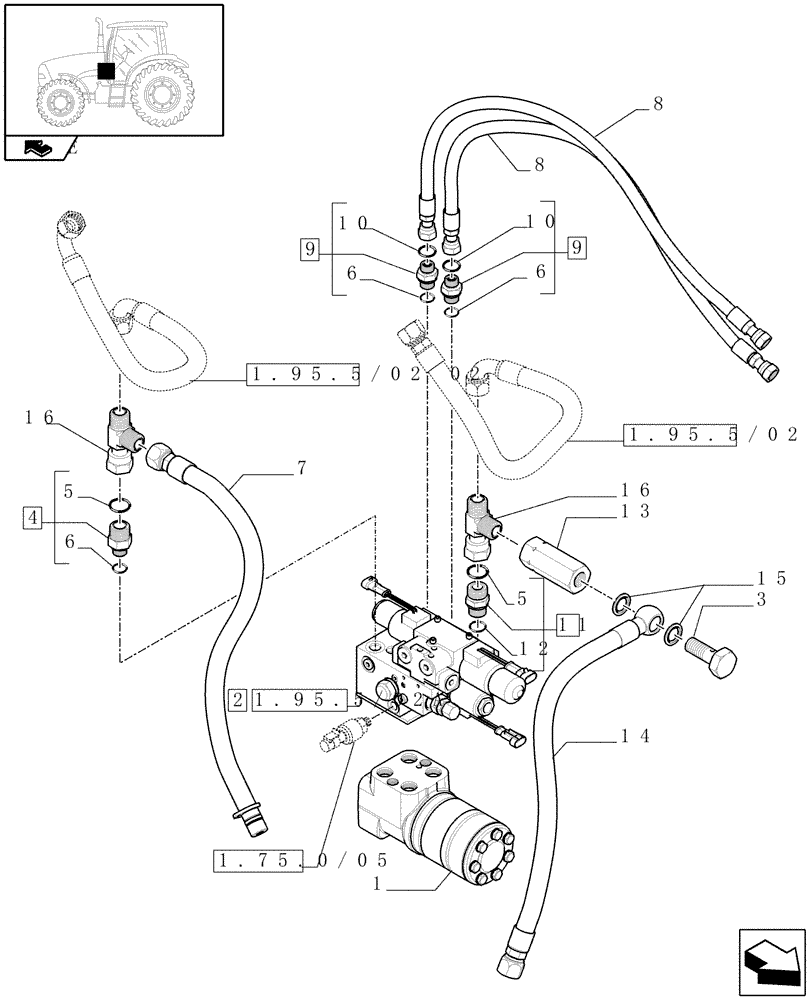

Запчасти Case IH PUMA 195 (1.95.5/02[01]) - (VAR.190-330) AUTO GUIDANCE SYSTEM READY - VALVES AND PIPES - C6831 (10) - OPERATORS PLATFORM/CAB

1

87317895

HYDRAULIC STEERING

1шт.

2

87550040

HYDRAULIC VALVE

ASSY

1шт.

3

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

4

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

1шт.

5

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

6

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

3шт.

7

87735434

HOSE ASSY.

1шт.

8

82037164

HOSE,9.53mm ID x 685mm L, SAE 100R2

2шт.

9

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

2шт.

10

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

1шт.

12

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

13

87350633

FILTER

1шт.

14

87735435

HOSE ASSY.

1шт.

15

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

16

84989850

3 WAY CONNECTION

2шт.
