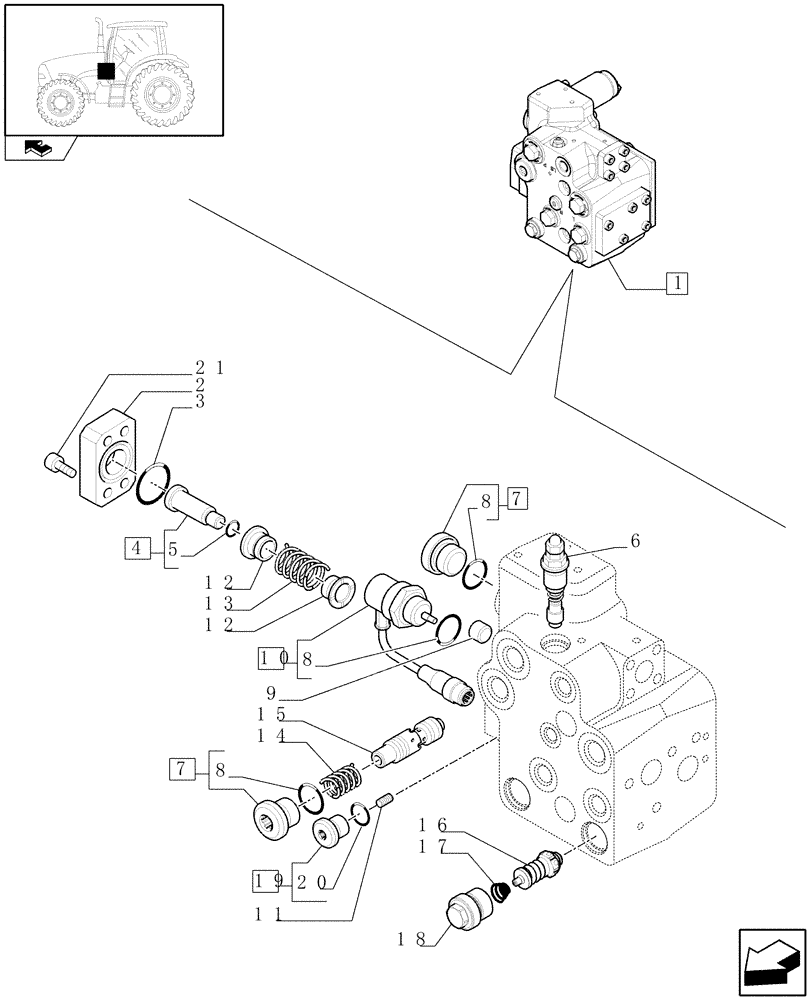

Запчасти Case IH PUMA 195 (1.95.5/01B[02]) - VALVE - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

1

87589947

HYDRAULIC VALVE

ASSY

1шт.

2

47128848

FLANGE

1шт.

3

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

4

47128851

PIN,Hex Socket, M8 x 25.00mm

1шт.

5

47129253

SEALING RING

1шт.

6

47128859

VALVE

1шт.

7

47128844

PLUG

2шт.

8

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

3шт.

9

10269401

PLUG,Taper Thd, Hex Skt, M12 x 1.5 x 11mm, 4.8

M12 x 1.5

1шт.

10

47128860

SENSOR

1шт.

11

13804421

SET SCREW,Hex Skt, M5 x 6mm, Flat Pt

1шт.

12

47128852

BUSHING

2шт.

13

47128855

SPRING

1шт.

14

47128856

SPRING

1шт.

15

87705323

SPOOL

1шт.

16

87705325

VALVE

2шт.

17

87705326

VALVE SPRING

2шт.

18

87705327

PLUG

2шт.

19

47128841

PLUG

1шт.

20

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

1шт.

21

14305773

SCREW,M6 x 14mm

M6 x 14

4шт.
