Запчасти Case IH PUMA 195 (1.95.5/01[01]) - (VAR.187-636) FAST STEERING - WHEEL AND COLUMN (10) - OPERATORS PLATFORM/CAB

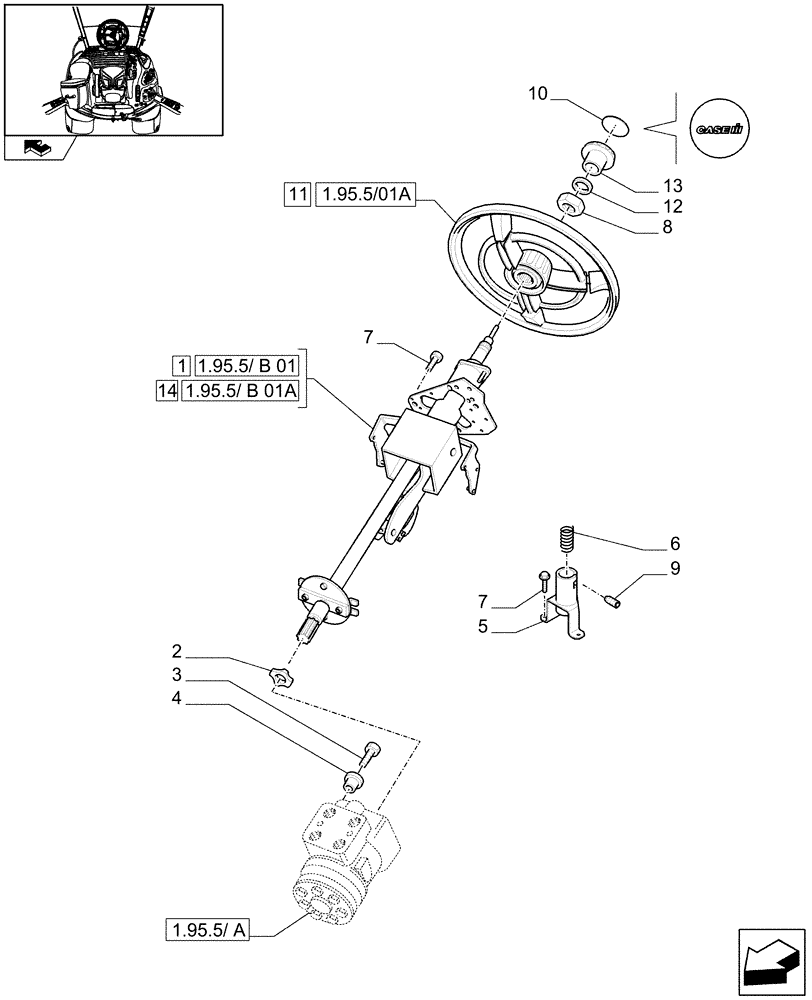

Схема запчастей Case IH PUMA 195 - (1.95.5/01[01]) - (VAR.187-636) FAST STEERING - WHEEL AND COLUMN (10) - OPERATORS PLATFORM/CAB
1.95.5/01a
13
10
7
2
9
8
home
4
6
11
1
14
12
7
5
3
1.95.5/ b 01a
1.95.5/ b 01
1.95.5/ a

Артикул

Название

Примечание

Количество

1

87709993

STEERING COLUMN

Tilt and Telescopic, ASSY, Serial Range: -C6465

1шт.

1

84229207

STEERING COLUMN

Tilt and Telescopic, ASSY, Serial Range: D6465-C6553

1шт.

1

84255779

STEERING COLUMN,Tilting, Telescoping

ASSY, Serial Range: D6553-C9023

1шт.

2

81873344

RUBBER INSULATOR

1шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

4

82009429

ISOLATOR

4шт.

5

87650958

BRACKET

, Serial Range: -C9023

1шт.

5

47390158

BRACKET

, Start Serial: D9023

1шт.

6

82012555

SPRING

1шт.

8

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

7

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

4шт.

9

13802121

SCREW,M4 x 5mm, Cl 8.8

1шт.

10

87698705

EMBLEM,44mm OD

, Start Serial: D6521

1шт.

11

87330391

STEERING WHEEL

1шт.

12

47136225

PLUG

1шт.

13

87350612

KNOB

1шт.

14

47383940

STEERING COLUMN,Tilting, Telescoping

ASSY, Start Serial: D9023

1шт.

Выбрано товаров: 17
